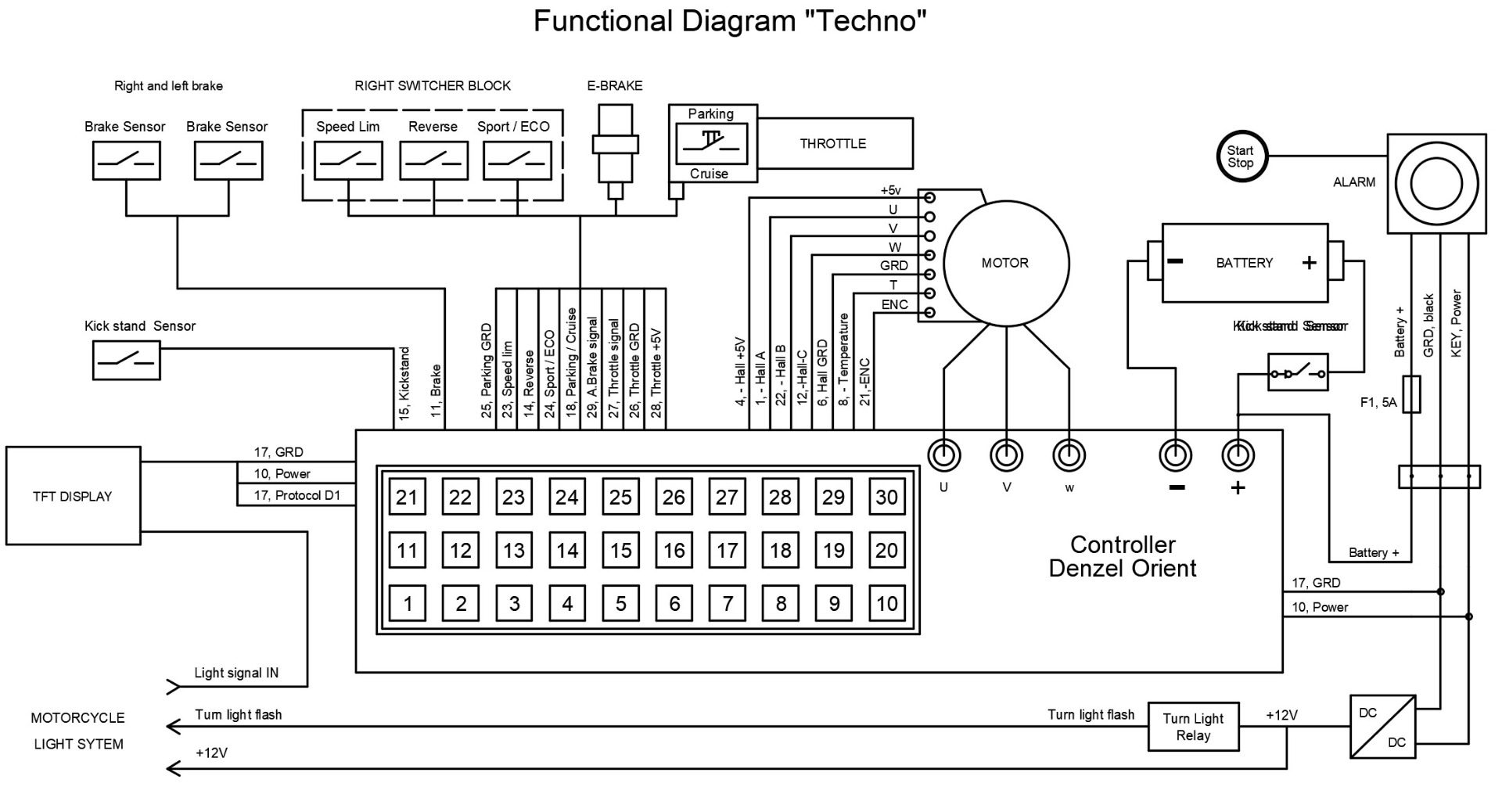

FUNCTIONAL DIAGRAM "CONTROLLER"
Functional diagram of Denzel Techno.
Also you can download this diagram with good quality in PDF format:

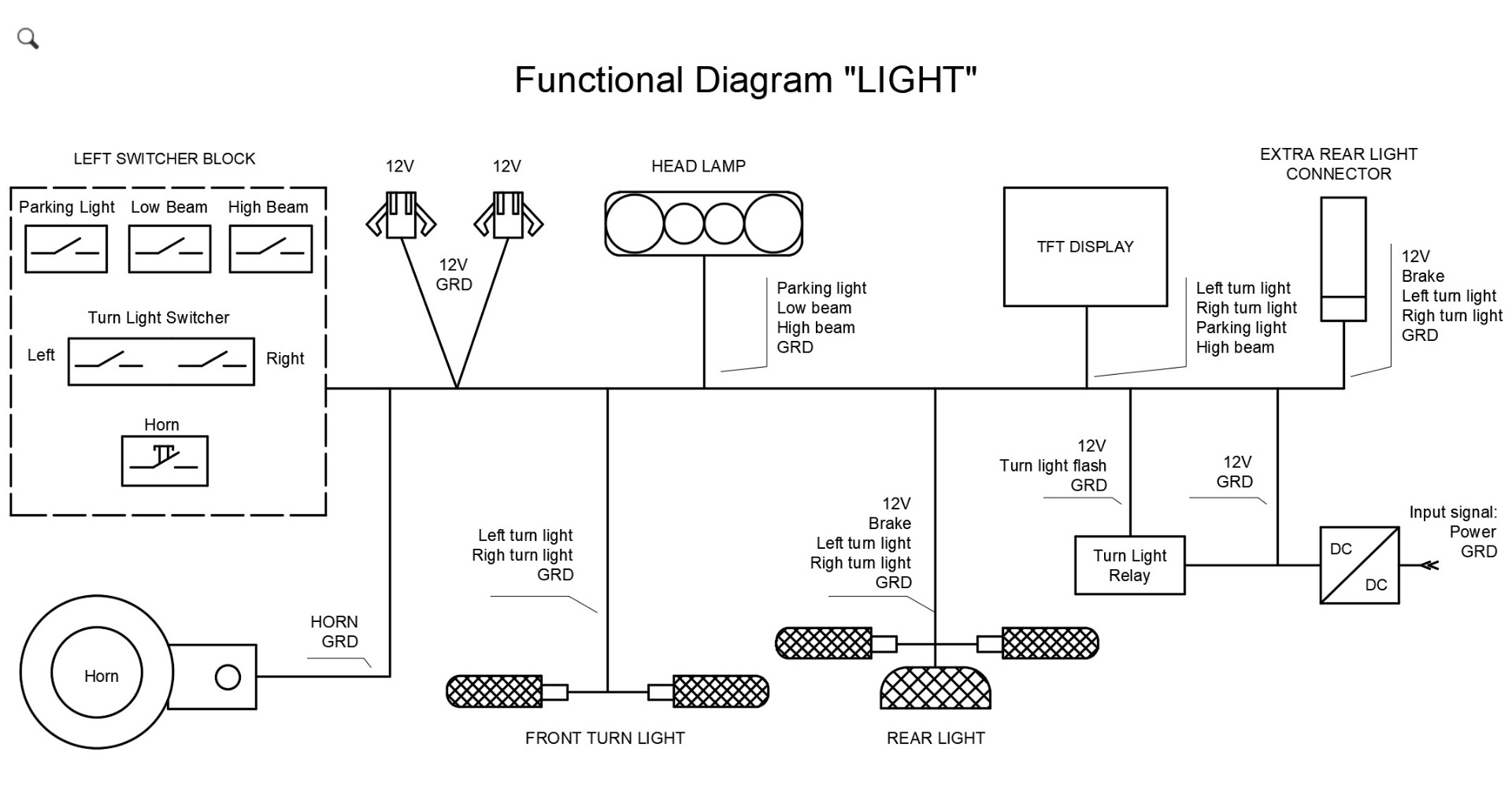

FUNCTIONAL DIAGRAM "LIGHT"
Functional diagram of Denzel Techno.
Also you can download this diagram with good quality in PDF format:

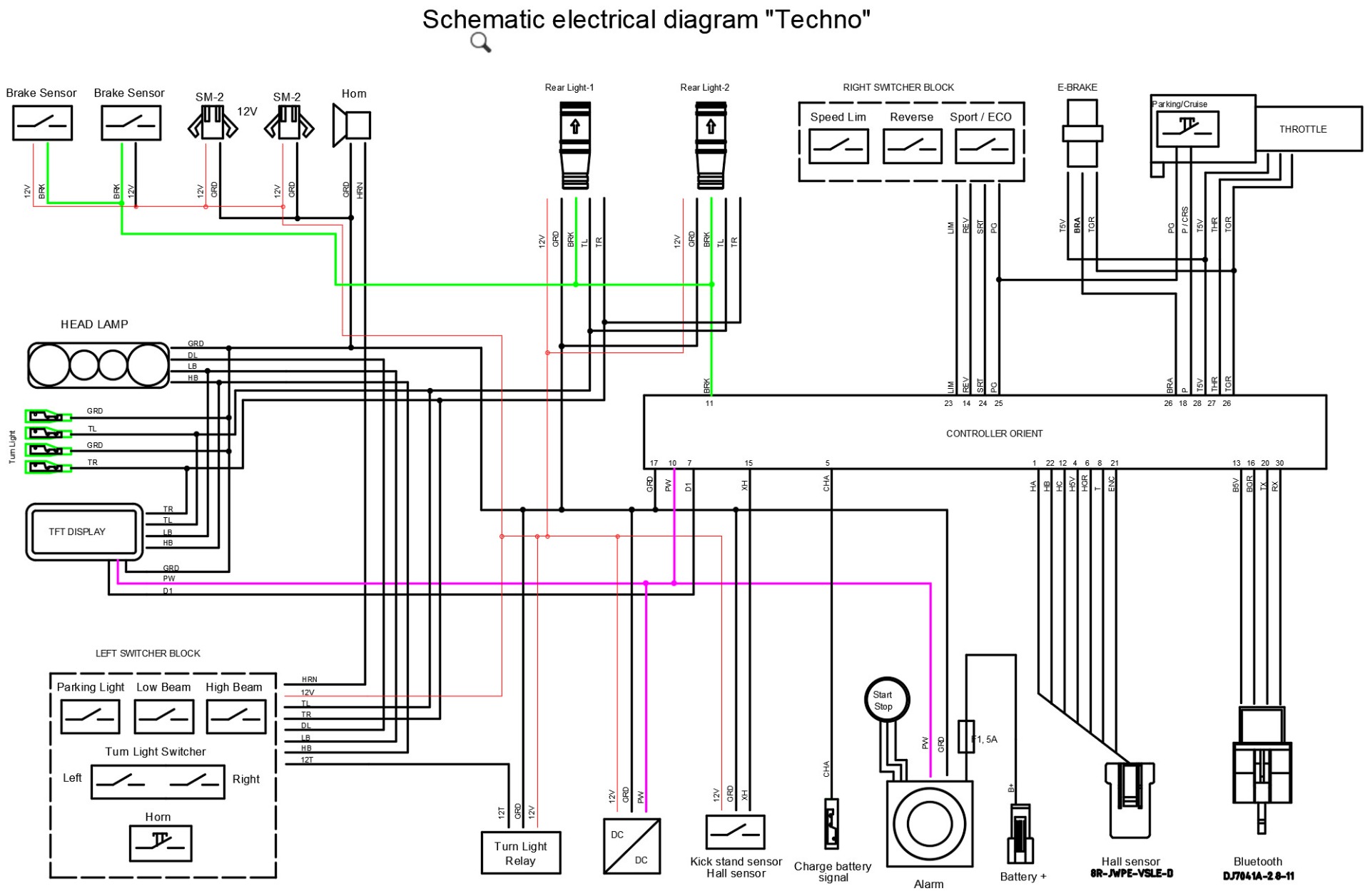

Schematic electrical diagram TECHNO
Functional diagram of Denzel Techno.
Also you can download this diagram with good quality in PDF format:

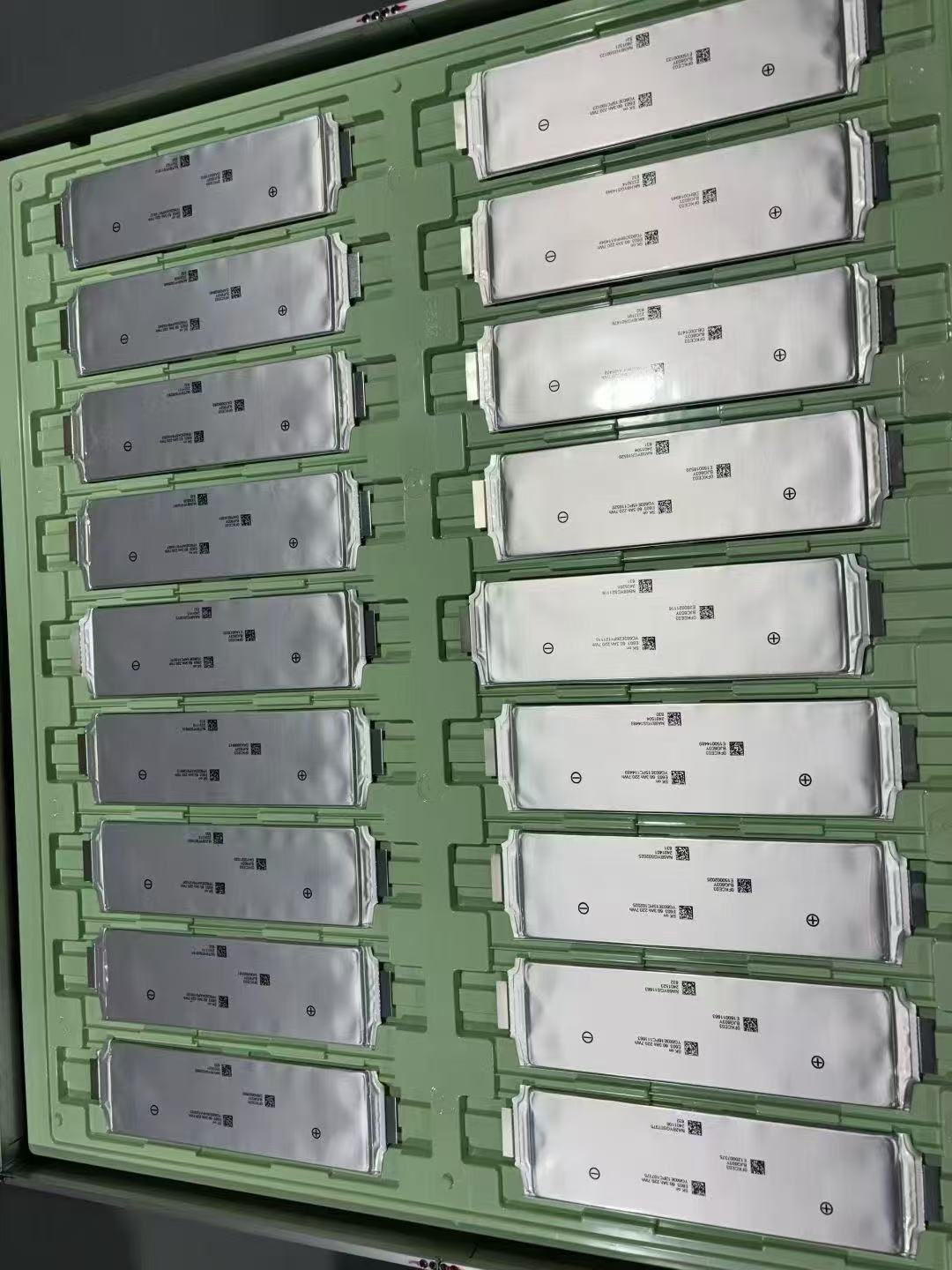

BATTERY CELLS
Battery Cell Model: SK E603
Made in Korea
Capacity: 60AH
Cycle Life: 1500 cycles
Max discharge current: 3C
Max charge current: 1C
More information you can find in cell's specification (PDF)
