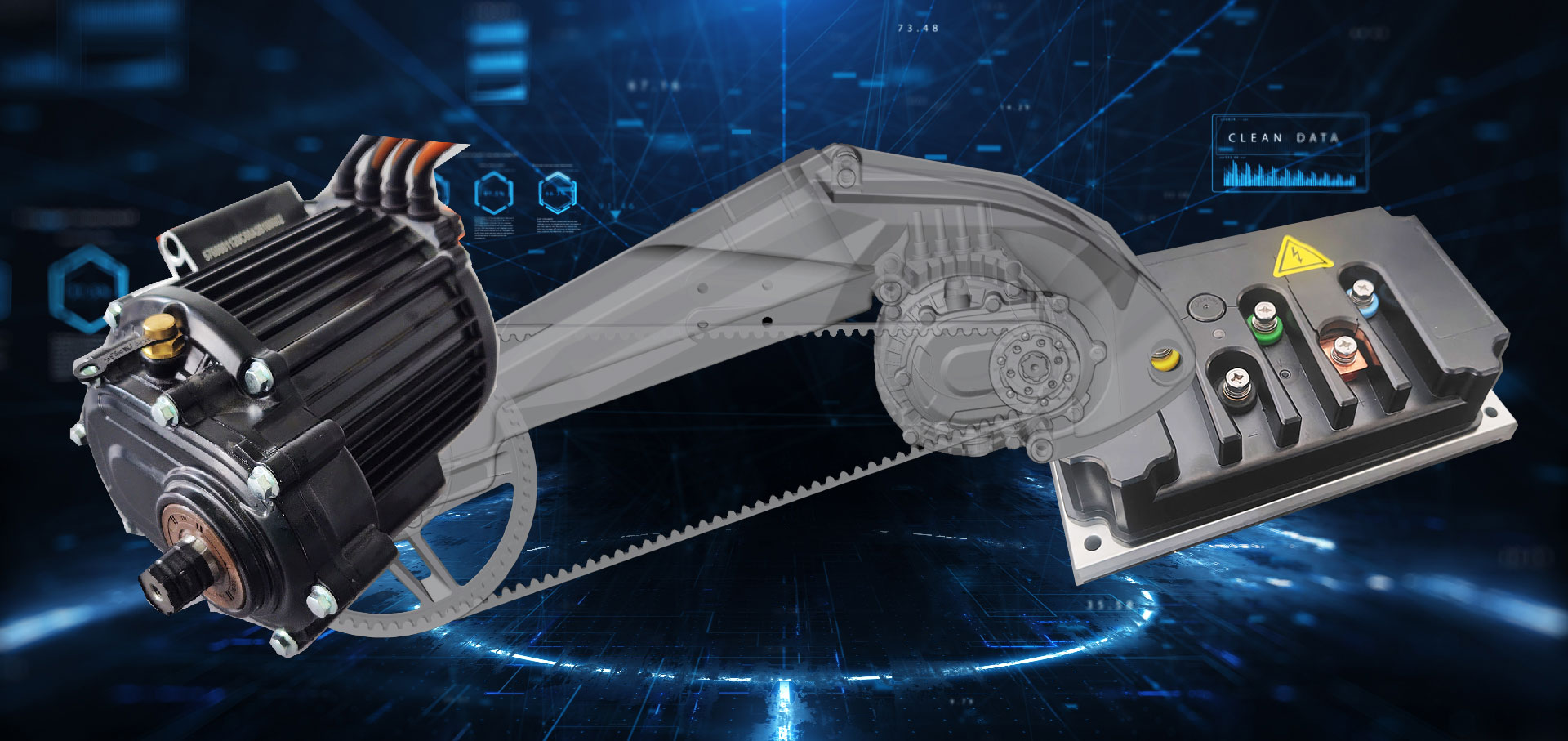

DENZEL KIT
Features
1. Waterproof
2. Fully functional motorcycle wiring harness includes complete lighting
3. Supports all controller functions (Sport - ECO mode, reverse, speed limit, cruise, parking...)

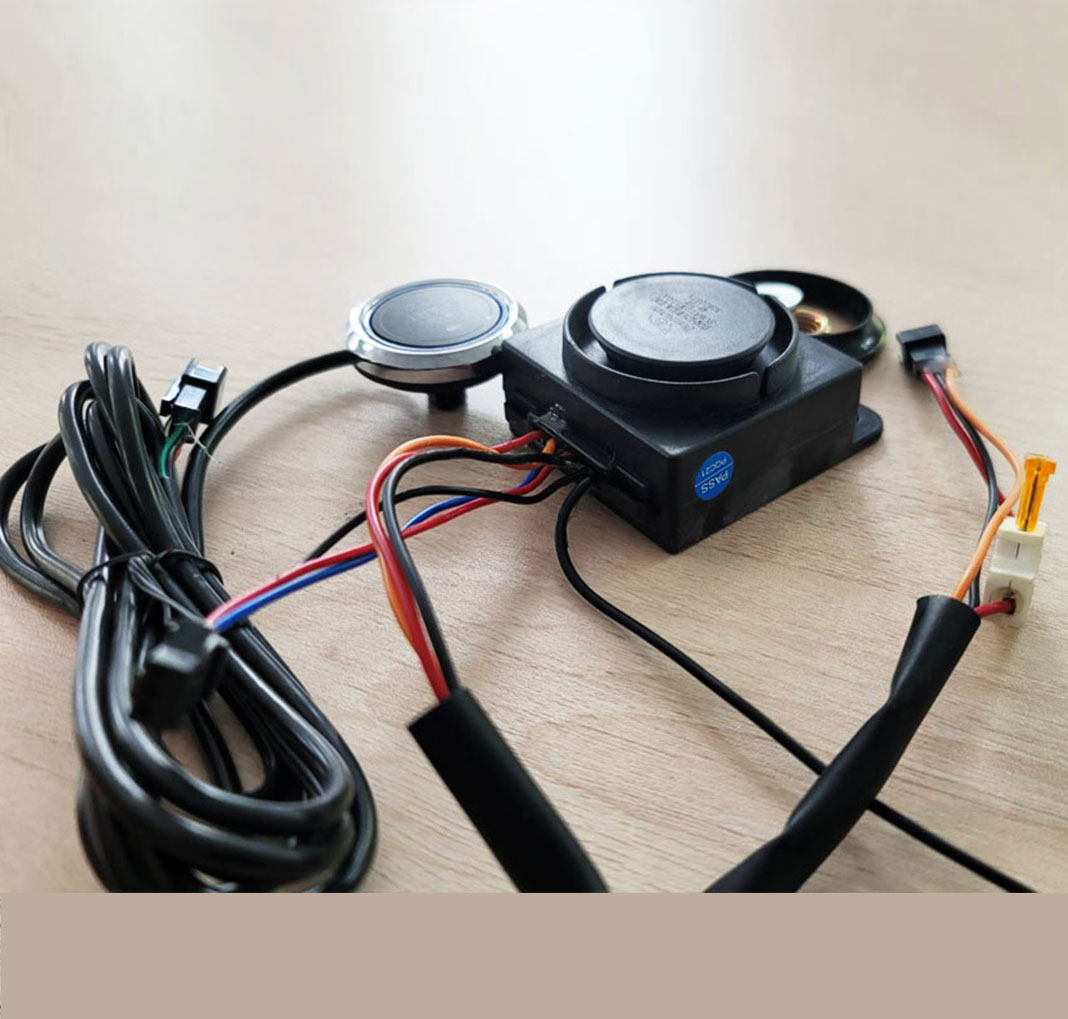

4. Alarm system
5. Bluetooth
6. Takes up very little space in the motorcycle.
POWER
We have two models of controllers: Orient 450A and Orient 1000A, Both controllers have same out signal contacts. So They are use same harness.

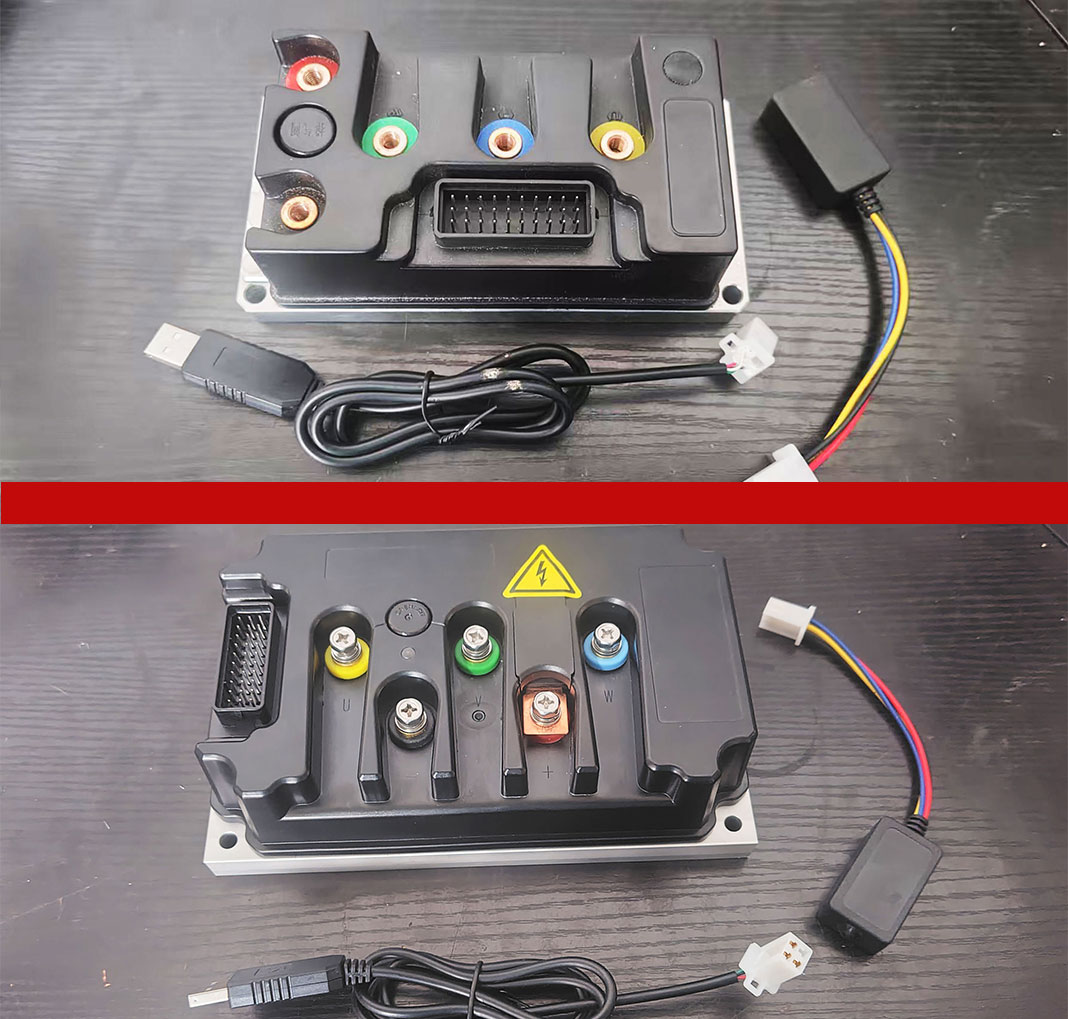

CONTROLLER ORIENT 450A
(app for Android and I-Phone)
CONTROLLER ORIENT 1000A
(app for Android and I-Phone)

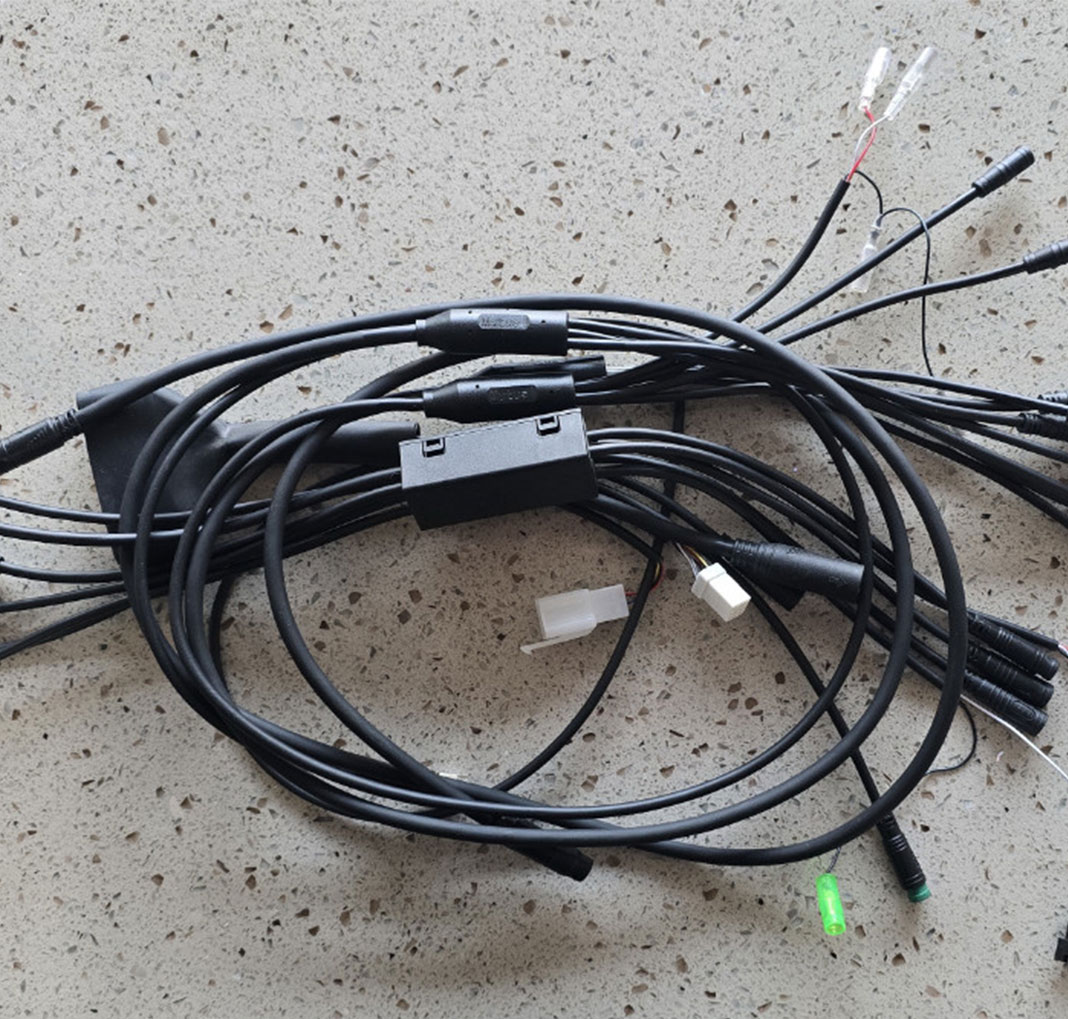

HARNESS
Convenient wiring harness for your electric bike, takes up very little space and includes all necessary connectors and signal outputs.
HARNESS SPECIFICATION

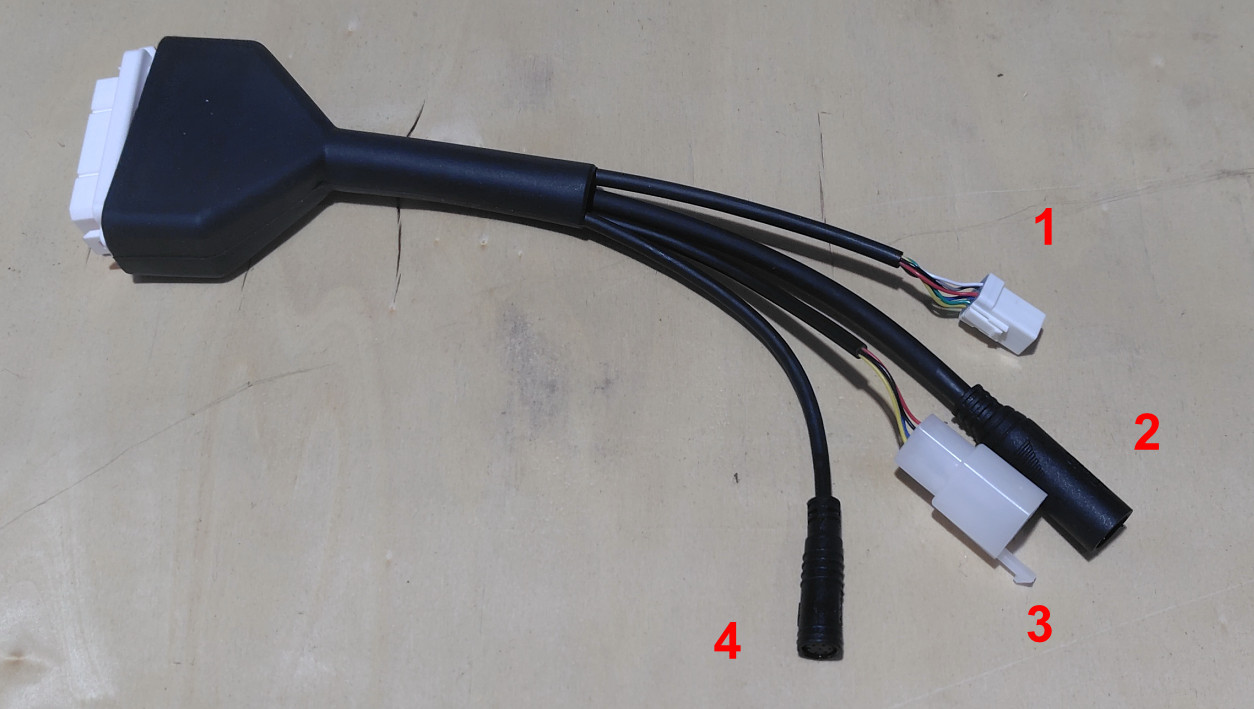

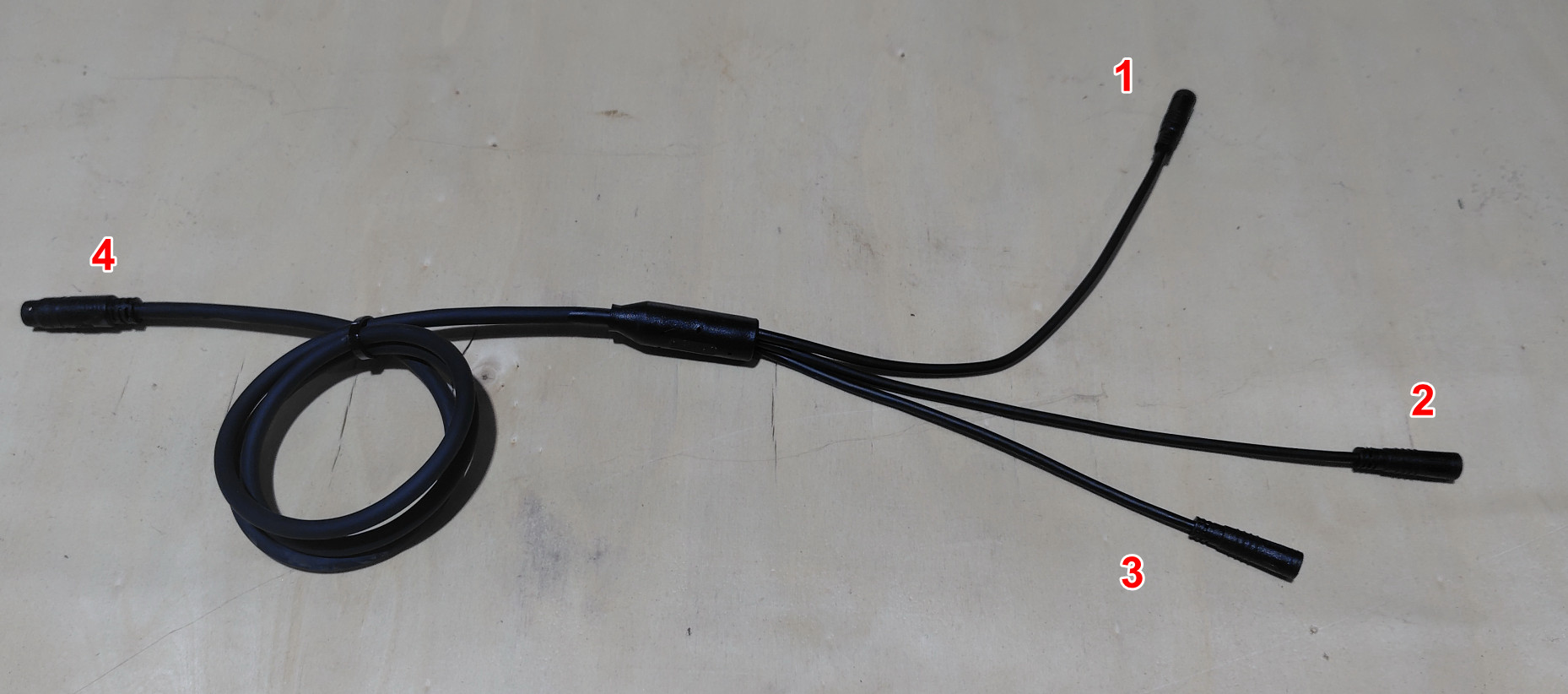

Model: C.H.-001
Controller harness
Suitable for controller Denzel 450A and 1000A
Connectors:
1. Hall sensor connector (Encoder)
2. 10-pin female connector for harness C.H.-003 (throttle set)
3. Bluetooth connector
4. Connector for distribution box C.H.-002

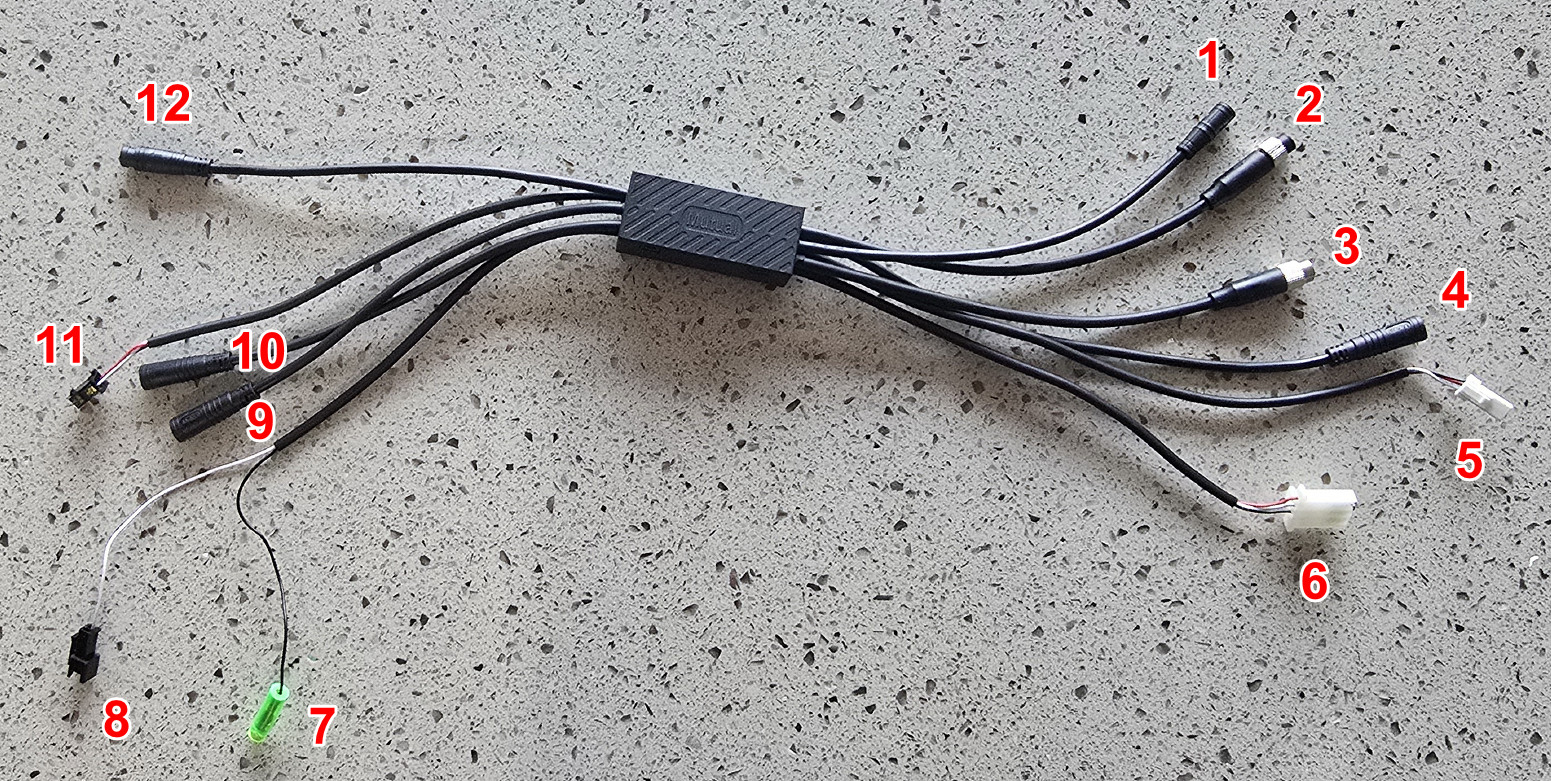

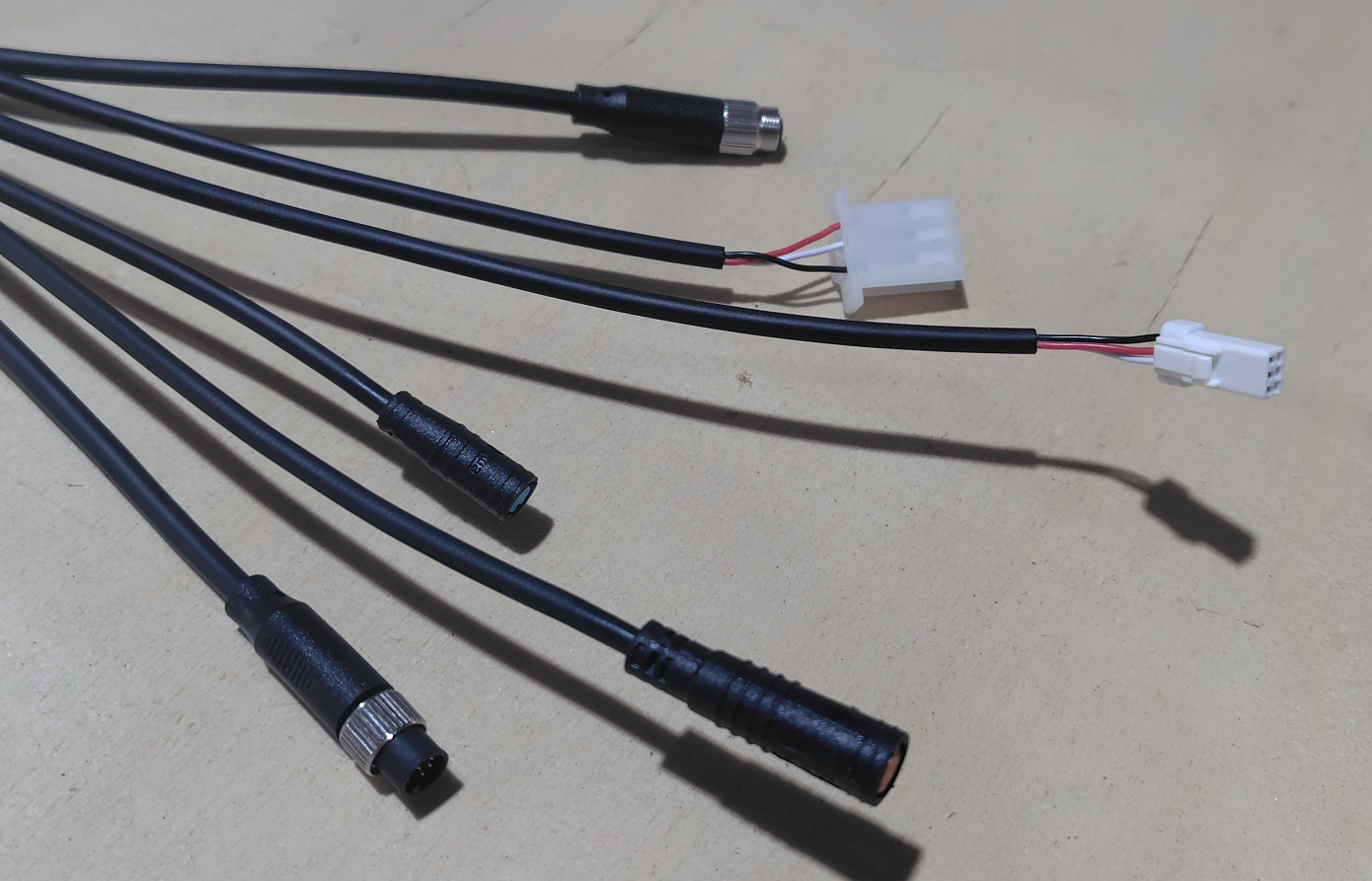

Model: C.H.-002 - Distribution box
1. 4-pin small female connector for C.H.-004 harness (brake, horn...)
2. 8-pin male connector for C.H.-005 harness (Display....)
3. 8-pin female connector for C.H.-006 harness (Light switcher)

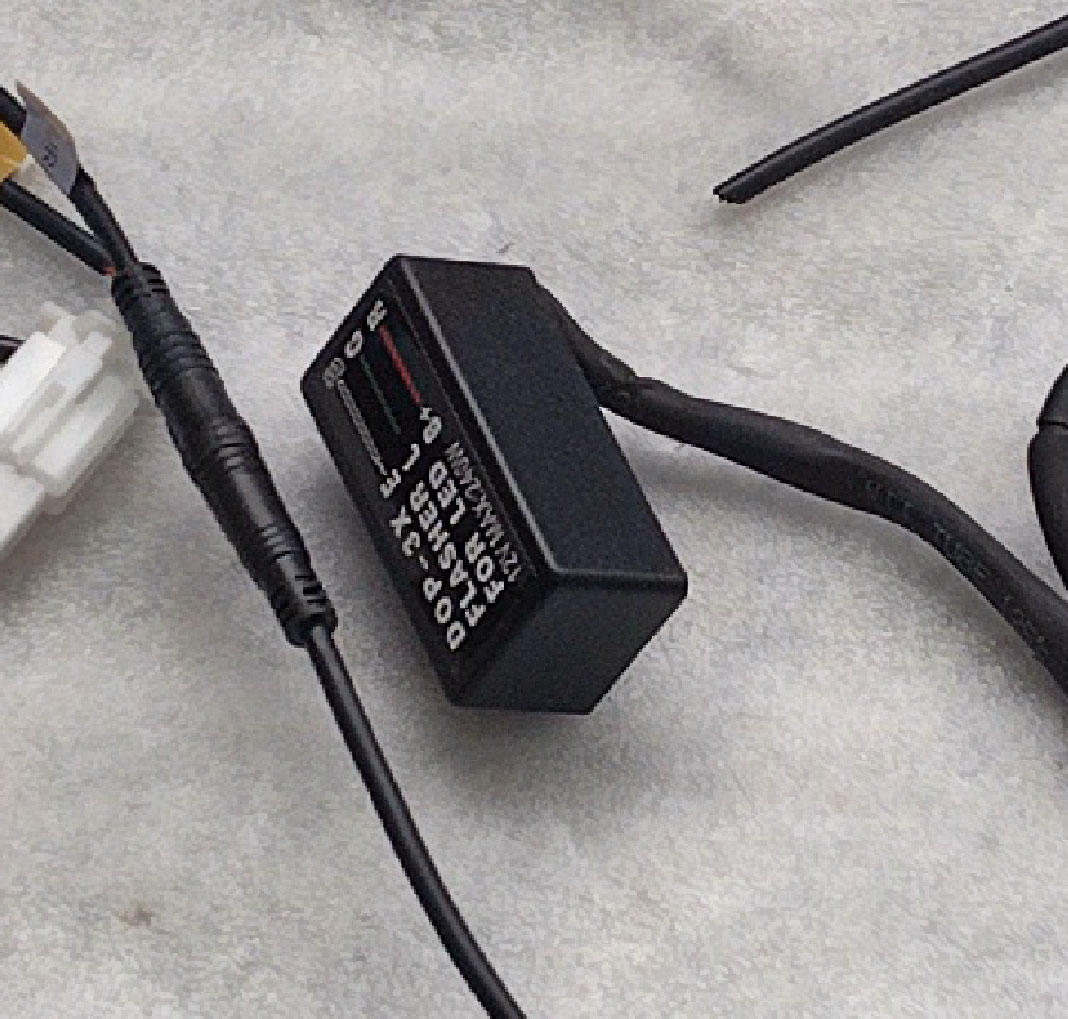

4. 3-pin female connector for turn relay.
5. 3-pin JSP female connector for kick stand hall

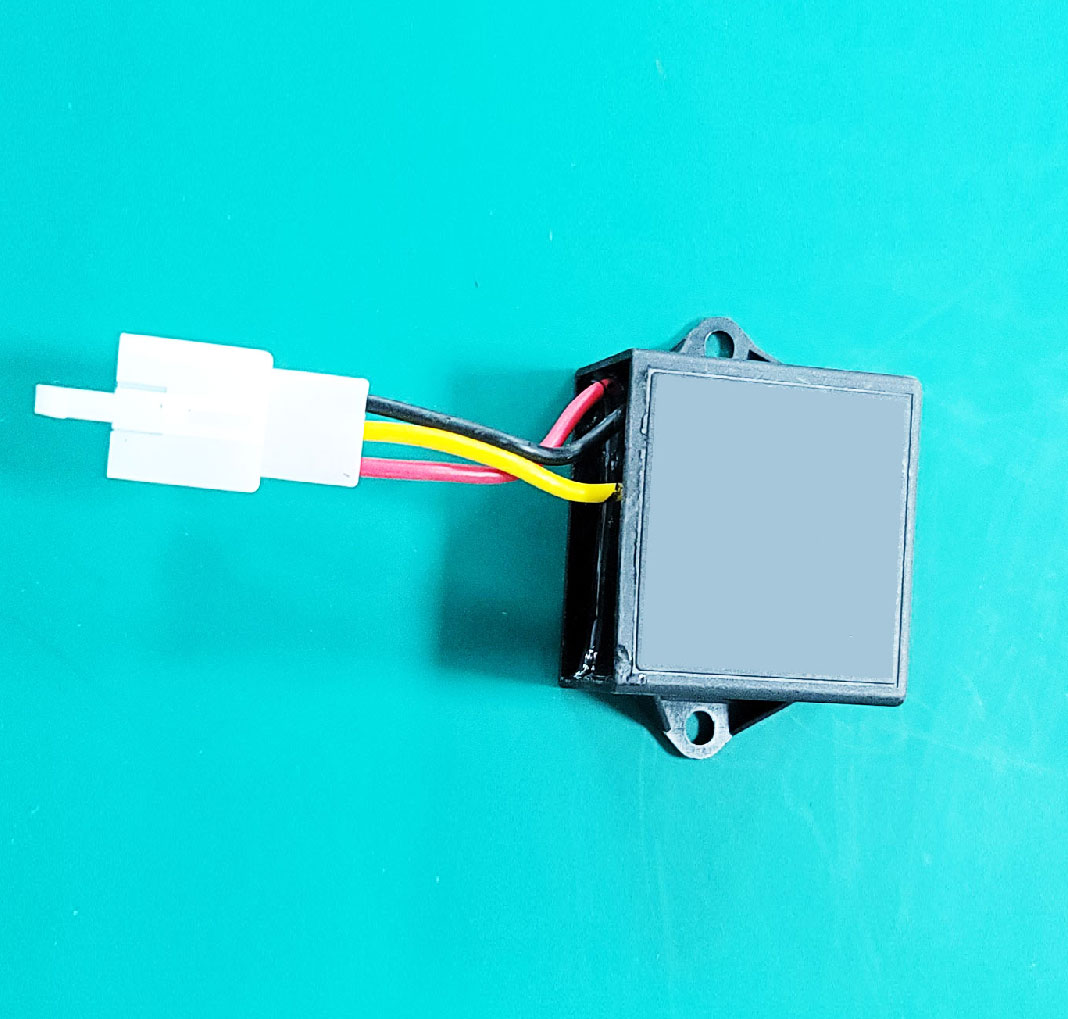

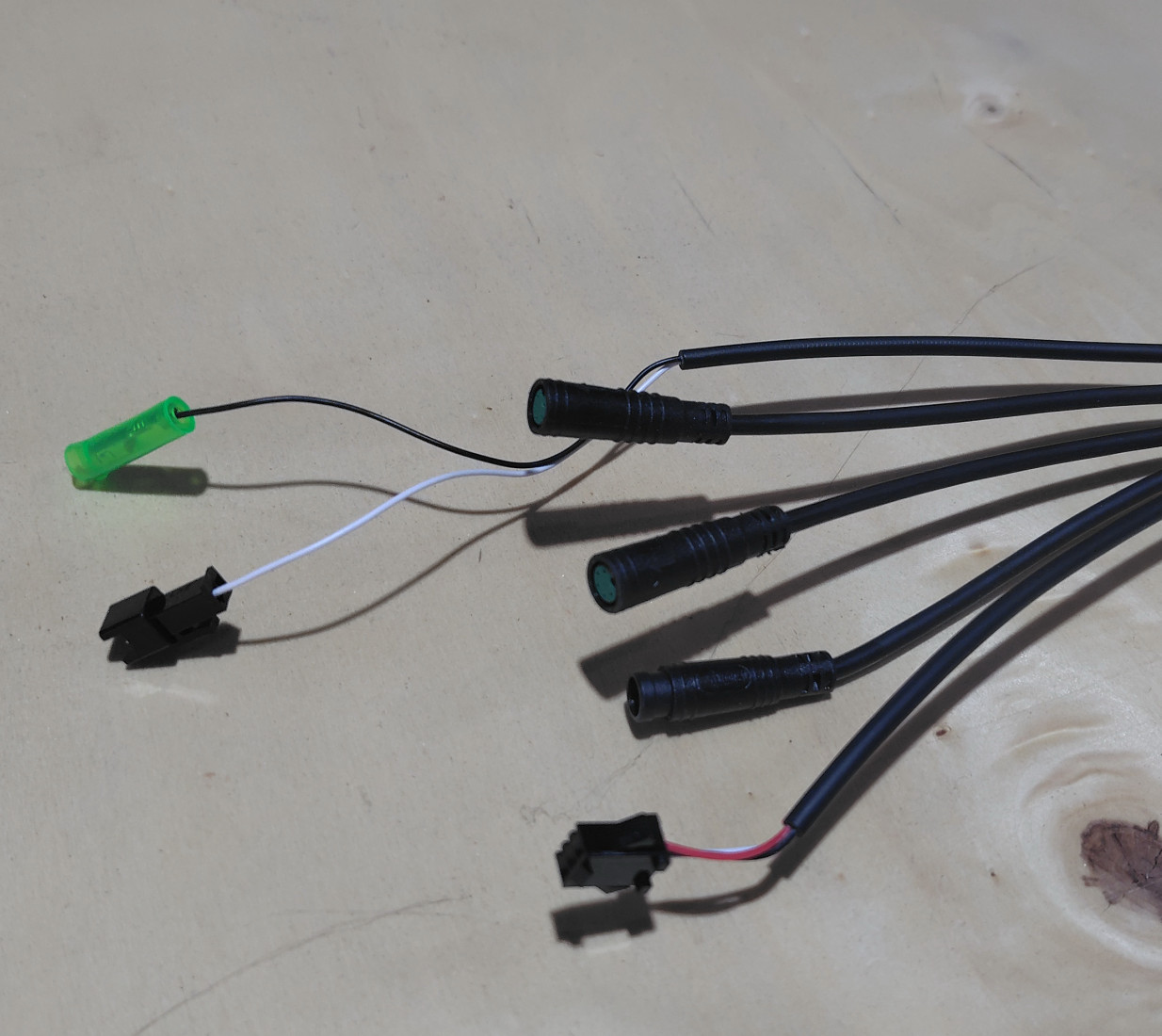

6. 3-pin female connector for DC/DC
7. Connector for charging battery signal.
8. 2-pin male SM-2 connector for battery + contact.
9. and 10. Same two 5-pin connectors - rear light.
11. 3-pin female SM-3 connector for ALARM
12. 6-pin male connector for connecting with controller harness C.H.-001

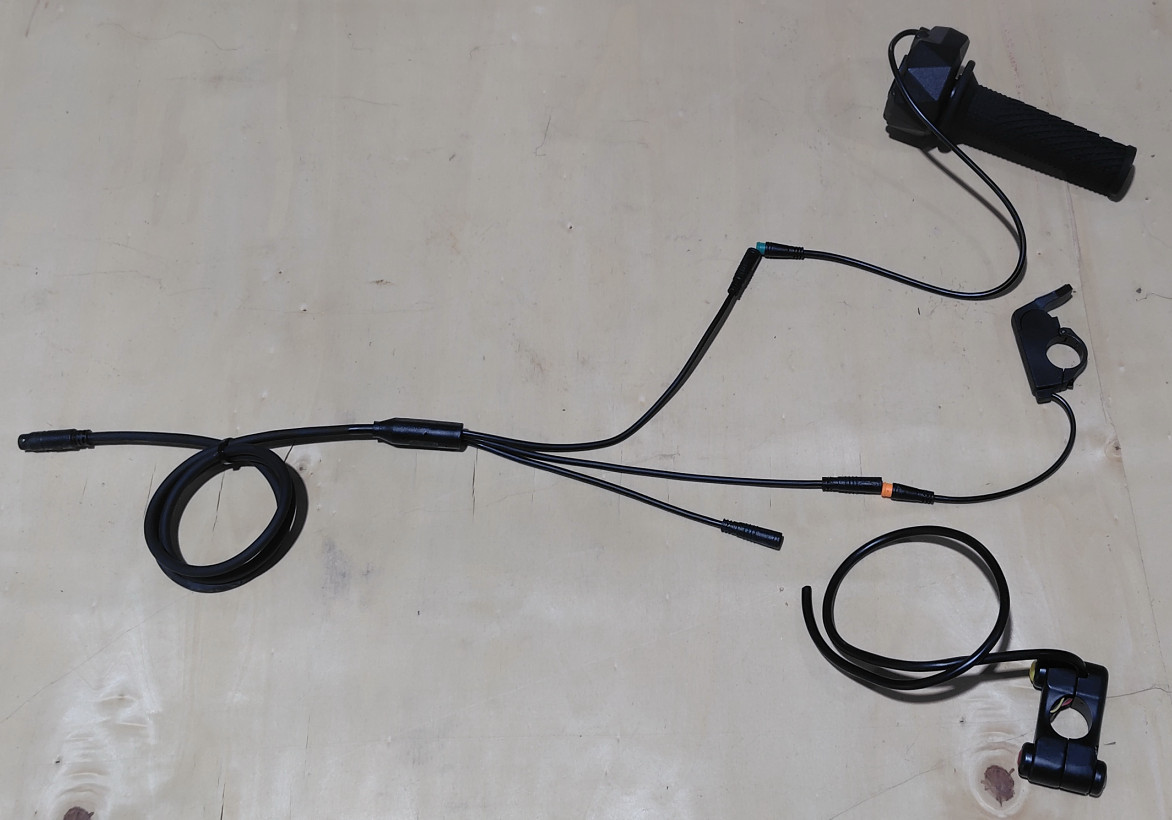

Model: C.H.-003 - THROTTLE SET

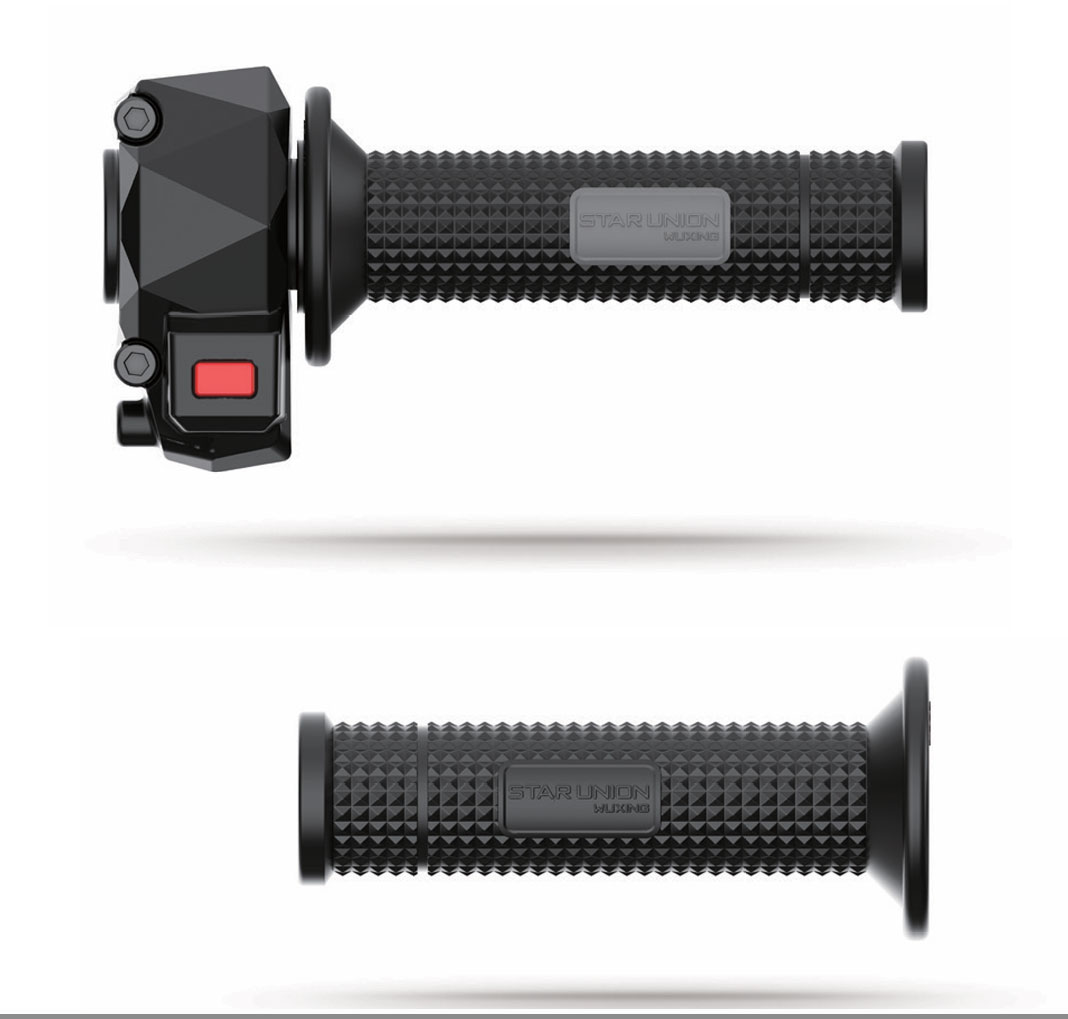

1. 5-pin female connector for throttle and parking button

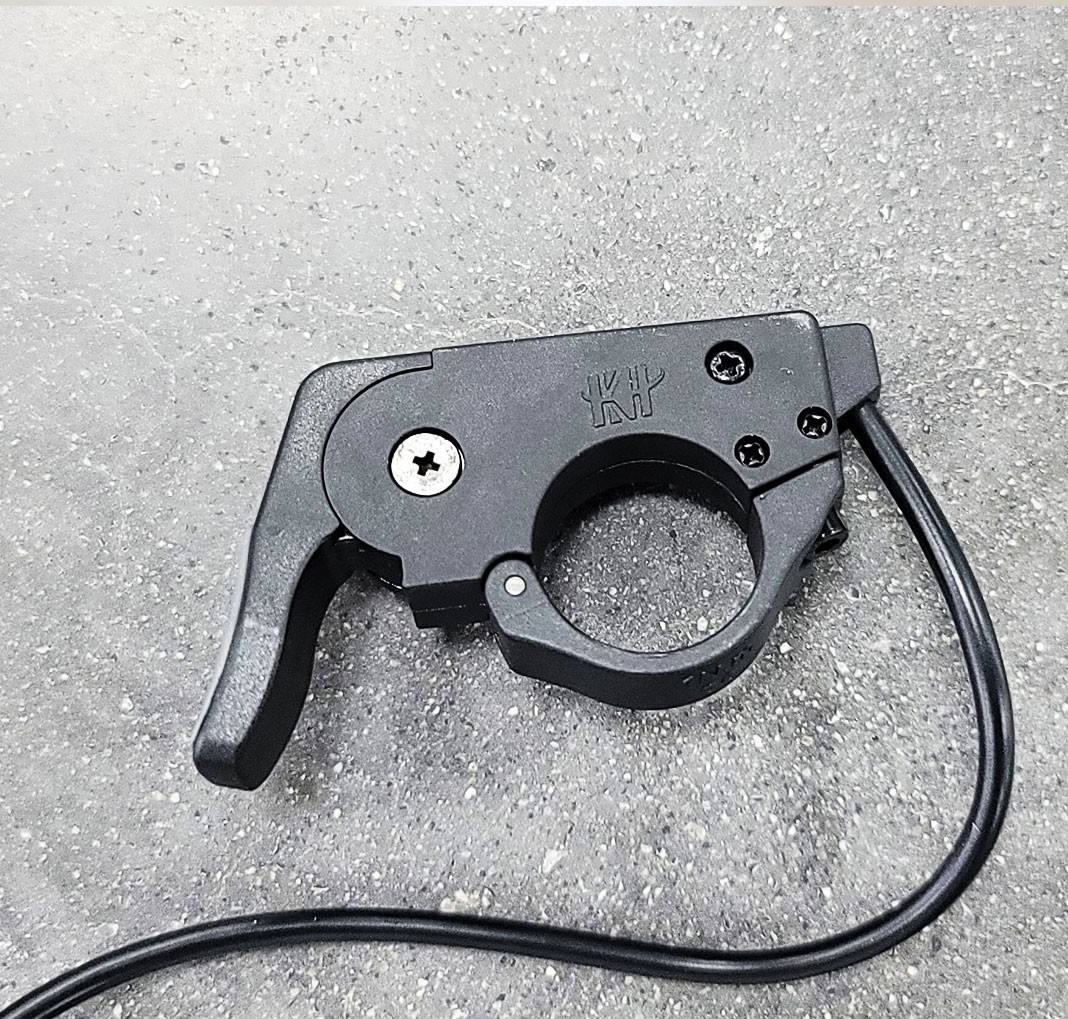

2. 3-pin female connector for analog electric brake

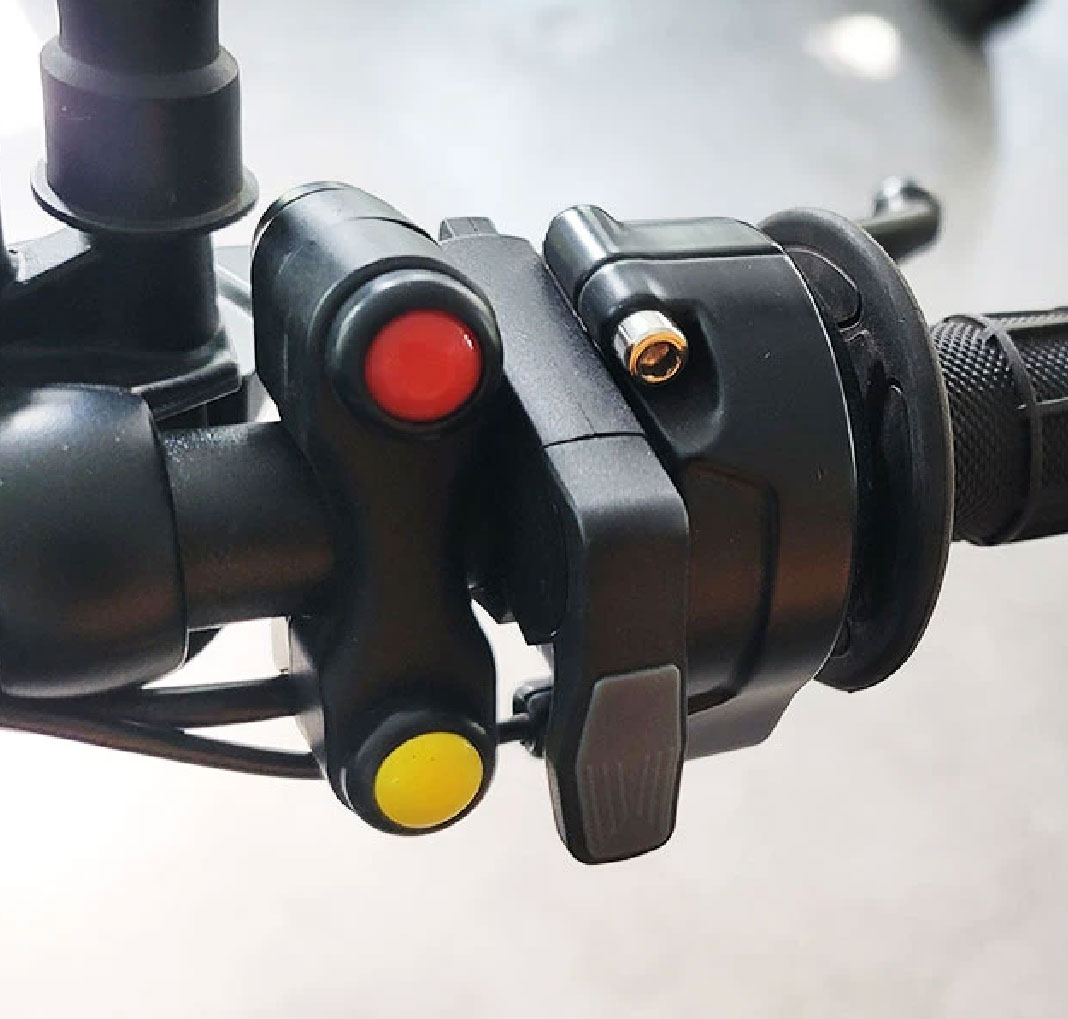

3. 4-pin female connector for mode switcher
4. 10-pin male connector to controller harness C.H.-001 - connector N2

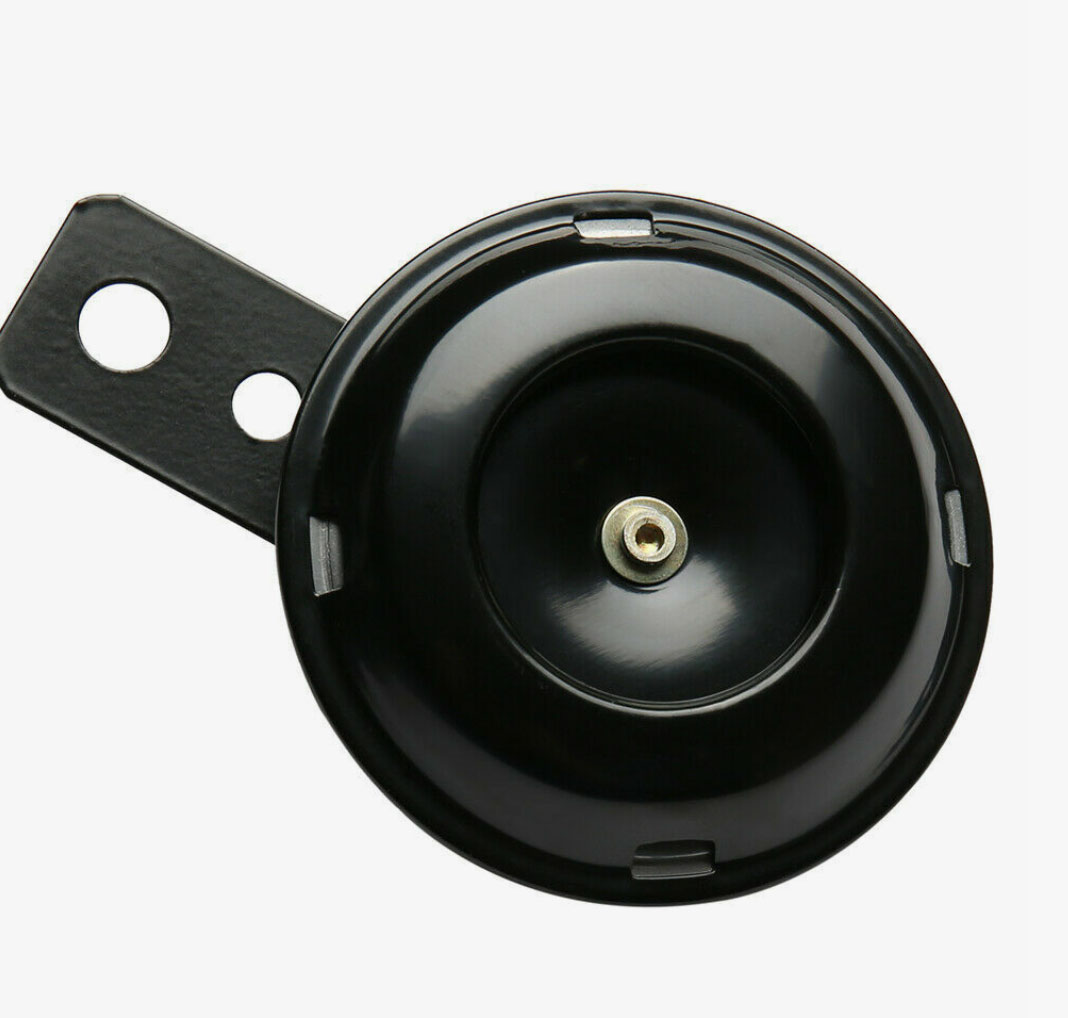

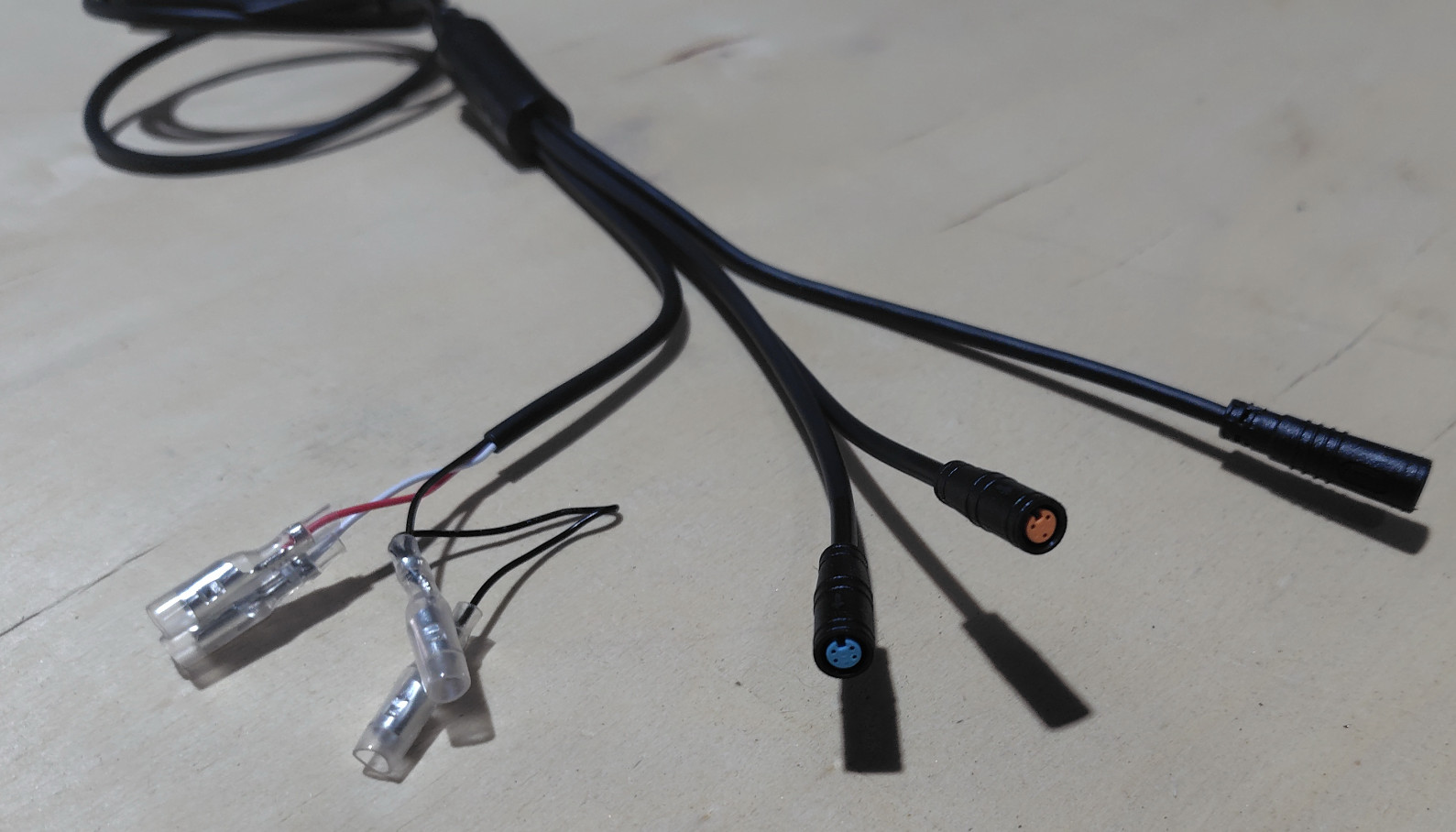

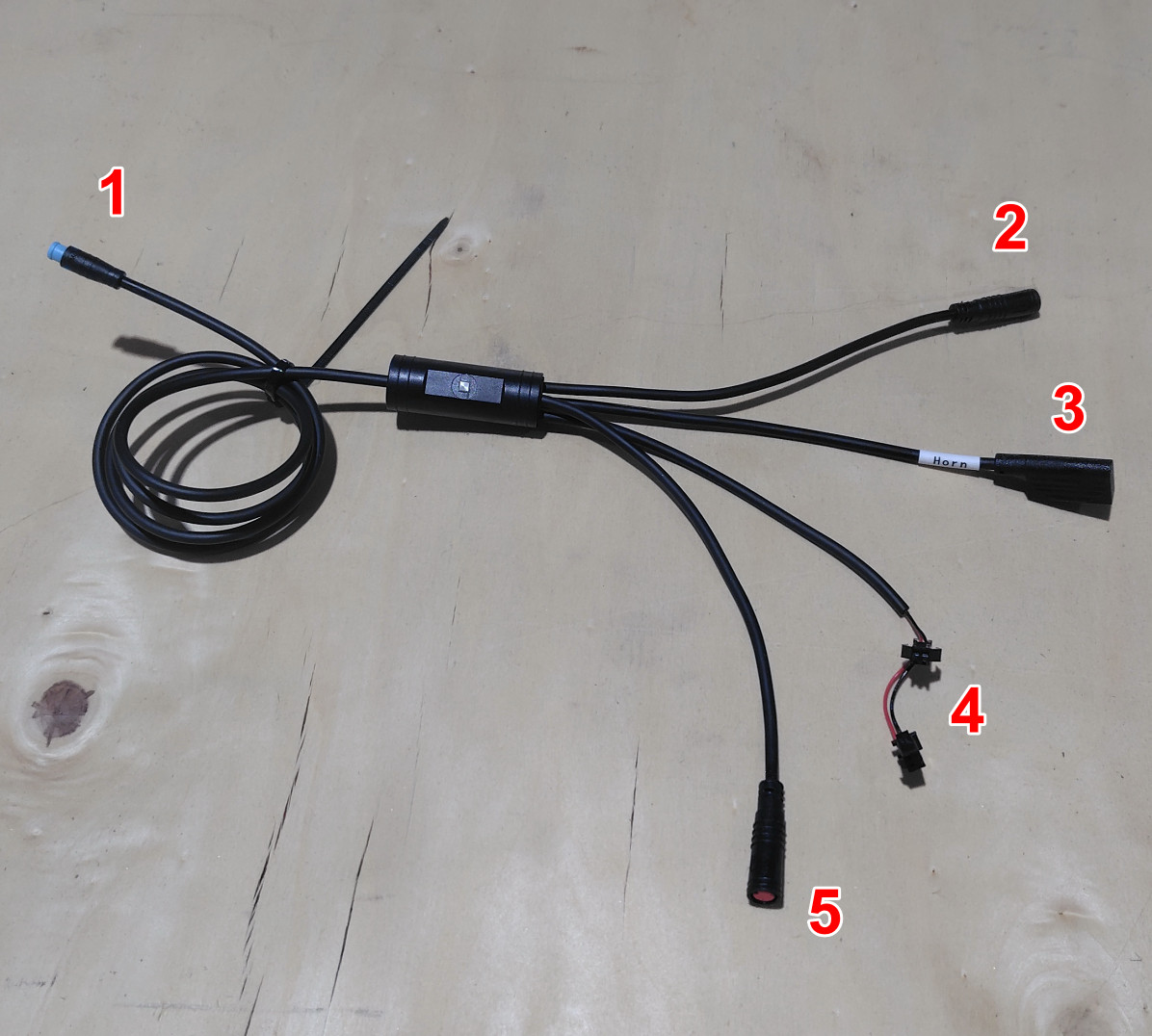

Model: C.H.-004 - HORN
1. 4-pin (small) male connector connecting with distribution box connector N1
2. and 5. - 2-pin female connectors, for electric brake sensor.
3. Special connector for horn
4. Two SM-2 connectors - 12V

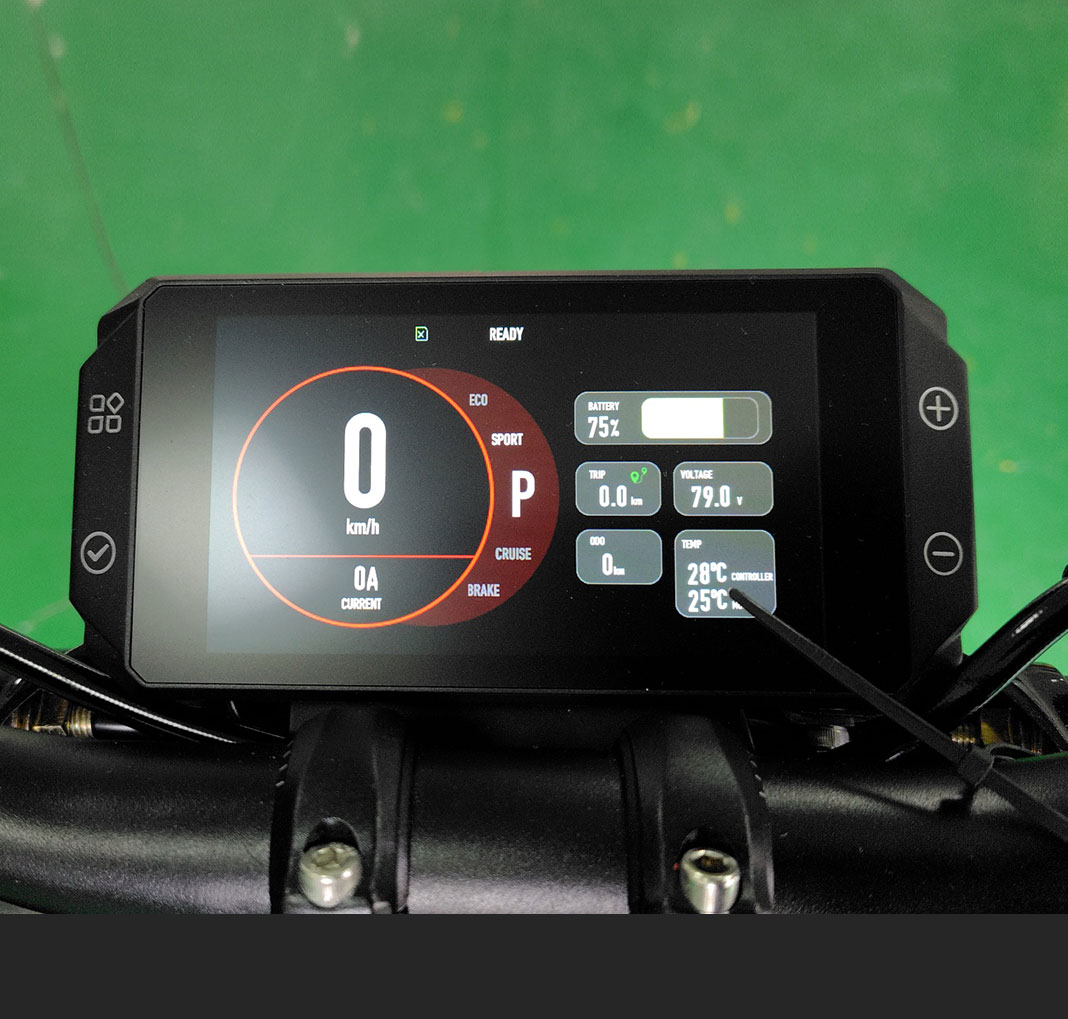

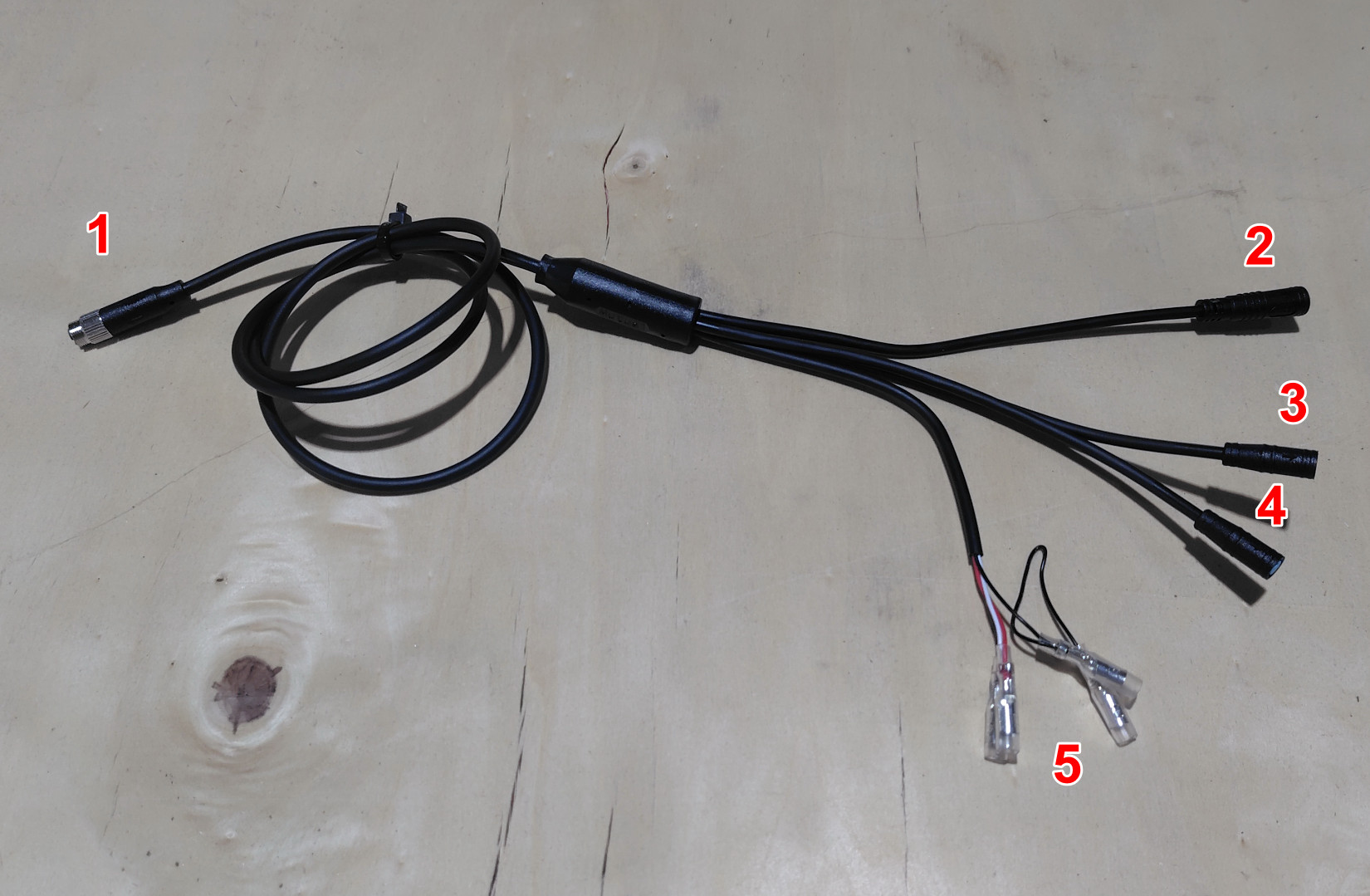

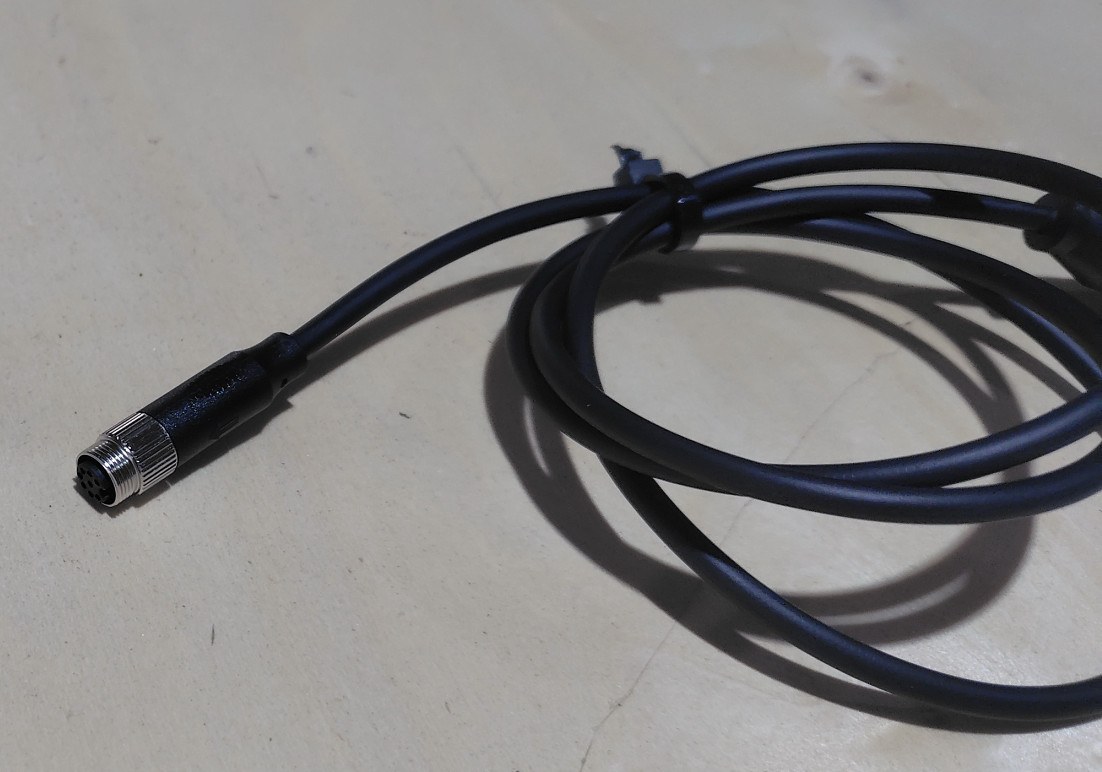

Model: C.H.-005 - DISPLAY
1. 8-pin female connector - to distribution box connector N2

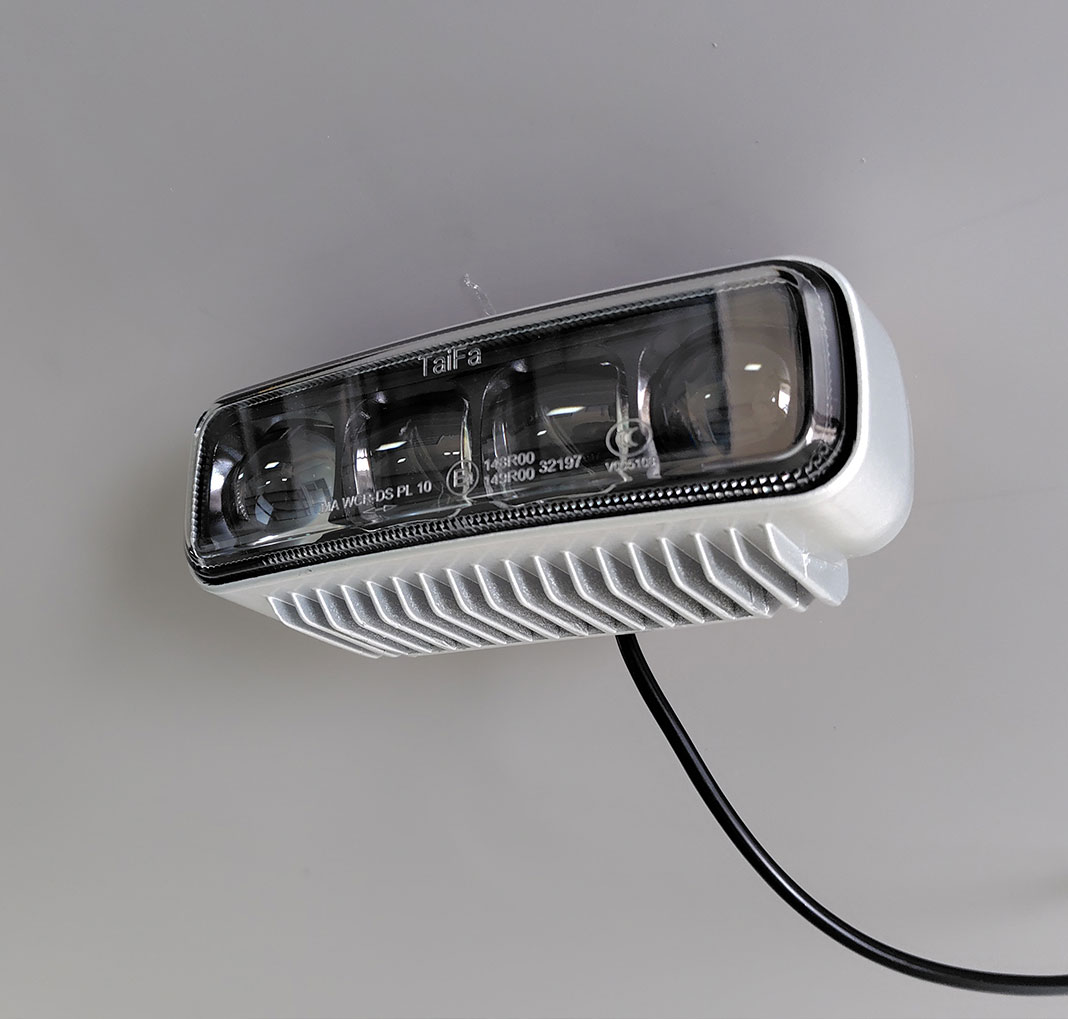

2. 4-pin female connector - head lamp
3. and 4. to diplay

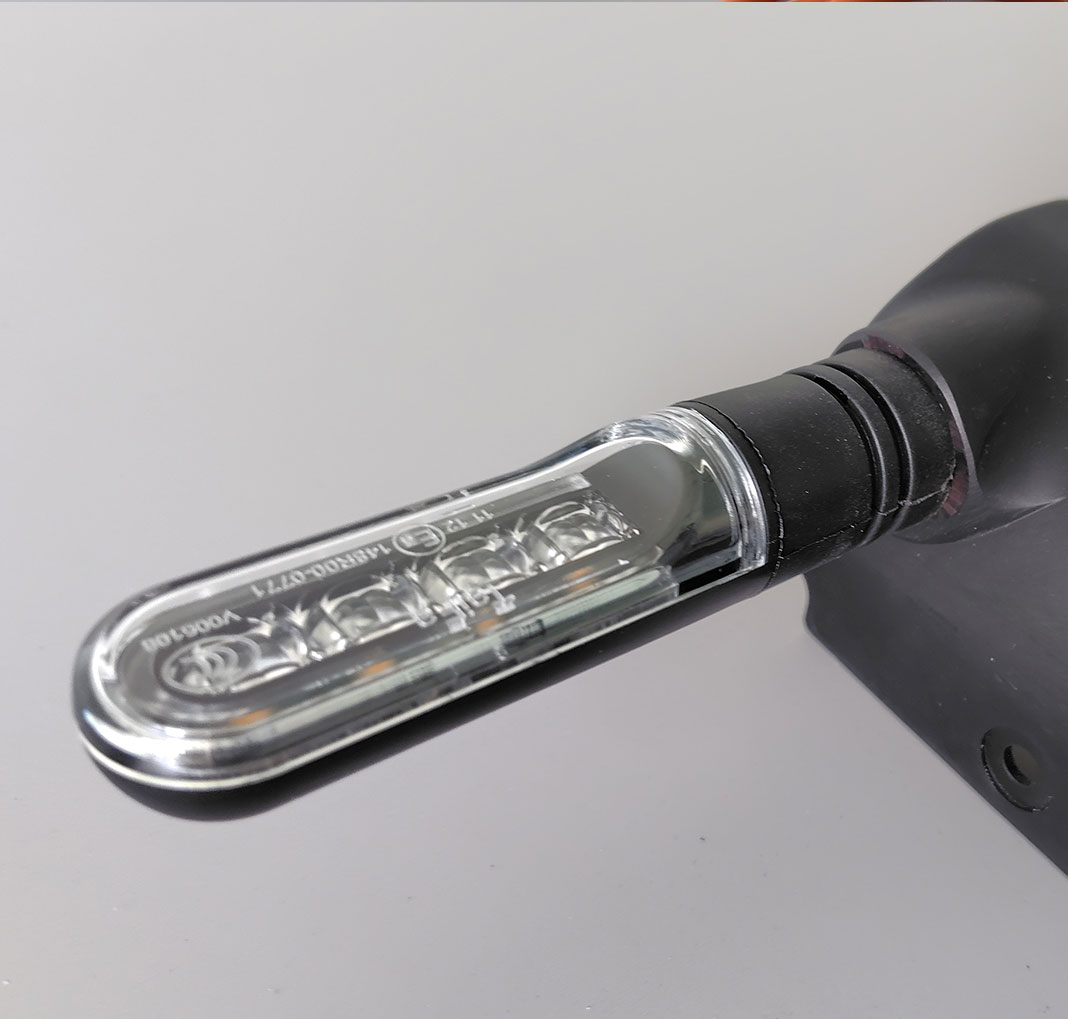

5. Front turn lights

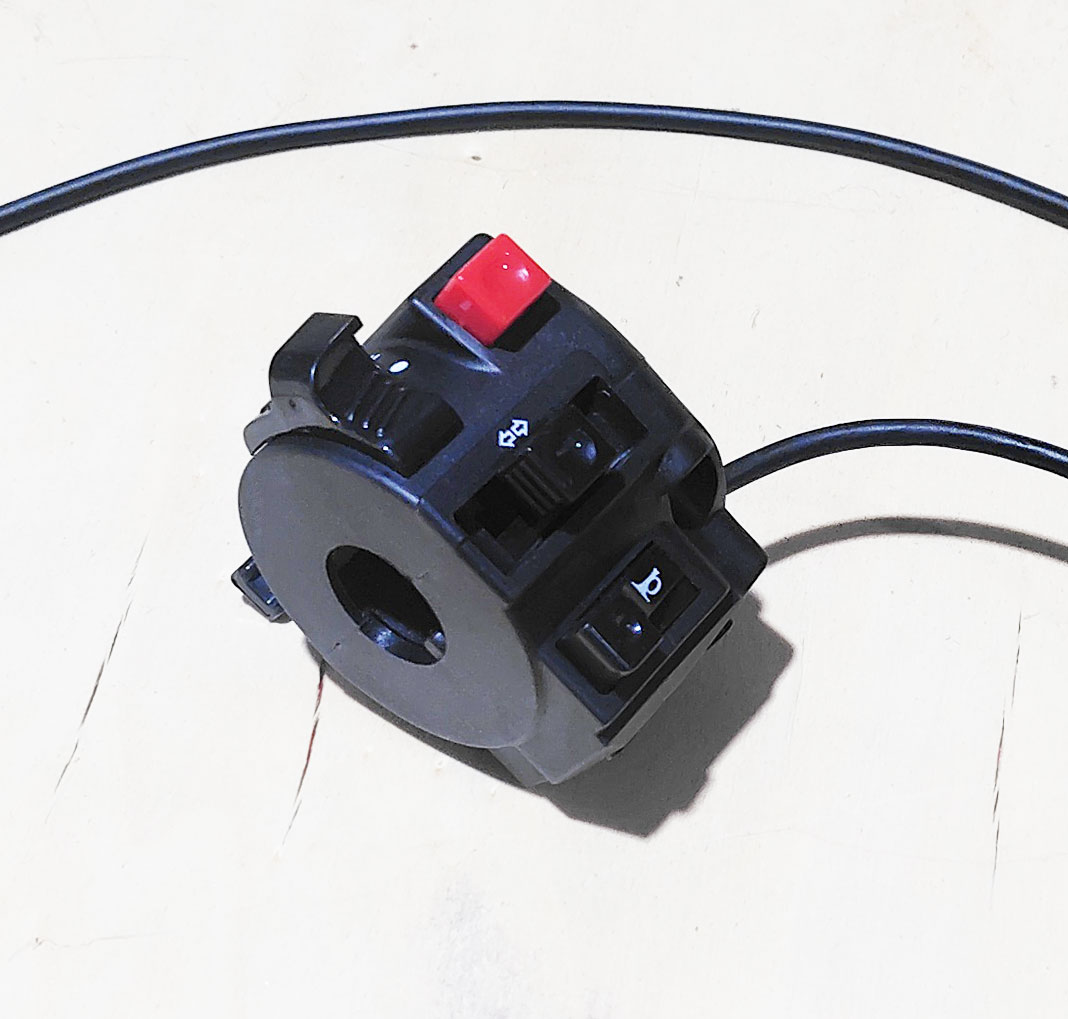

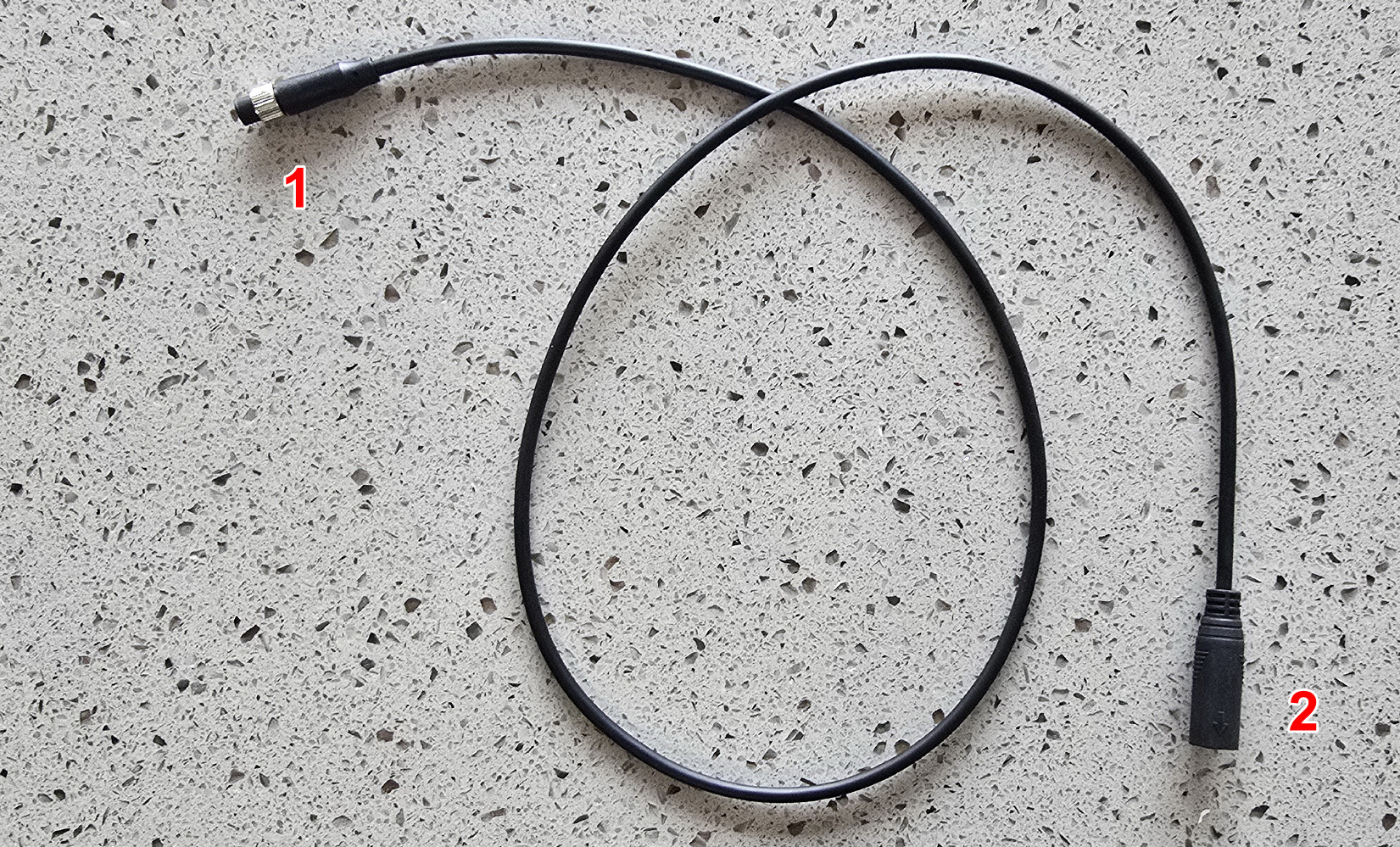

Model: C.H.-006 - LIGHT SWITCHER
1. 8-pin male connector - to distribution box connector N3

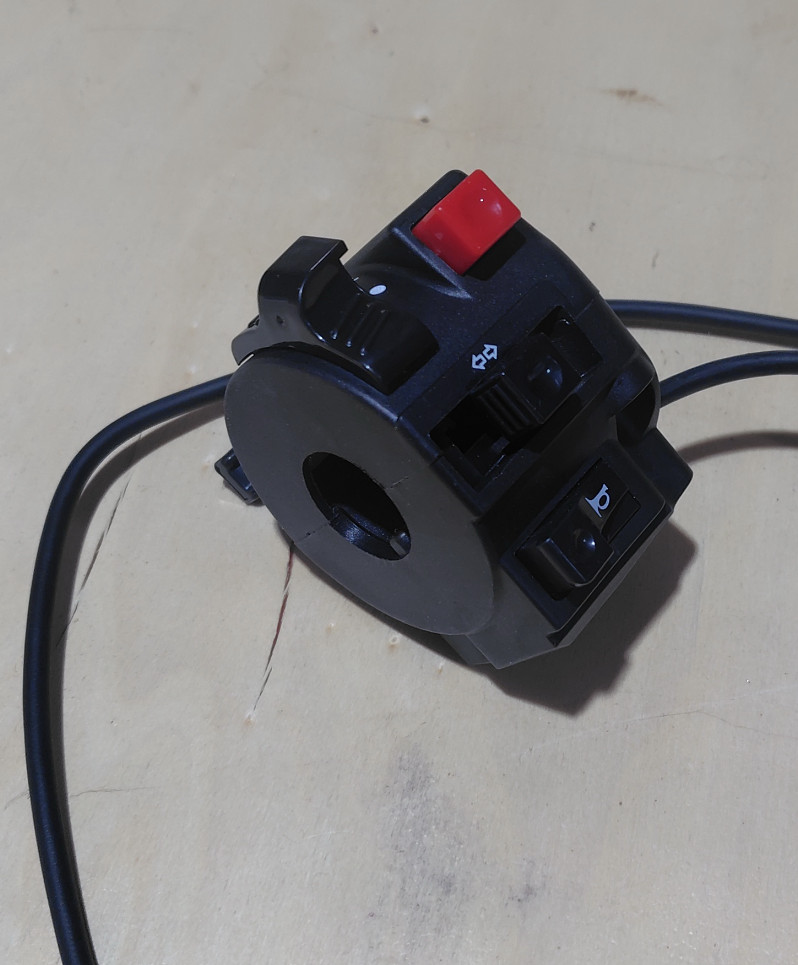

2. To light switcher

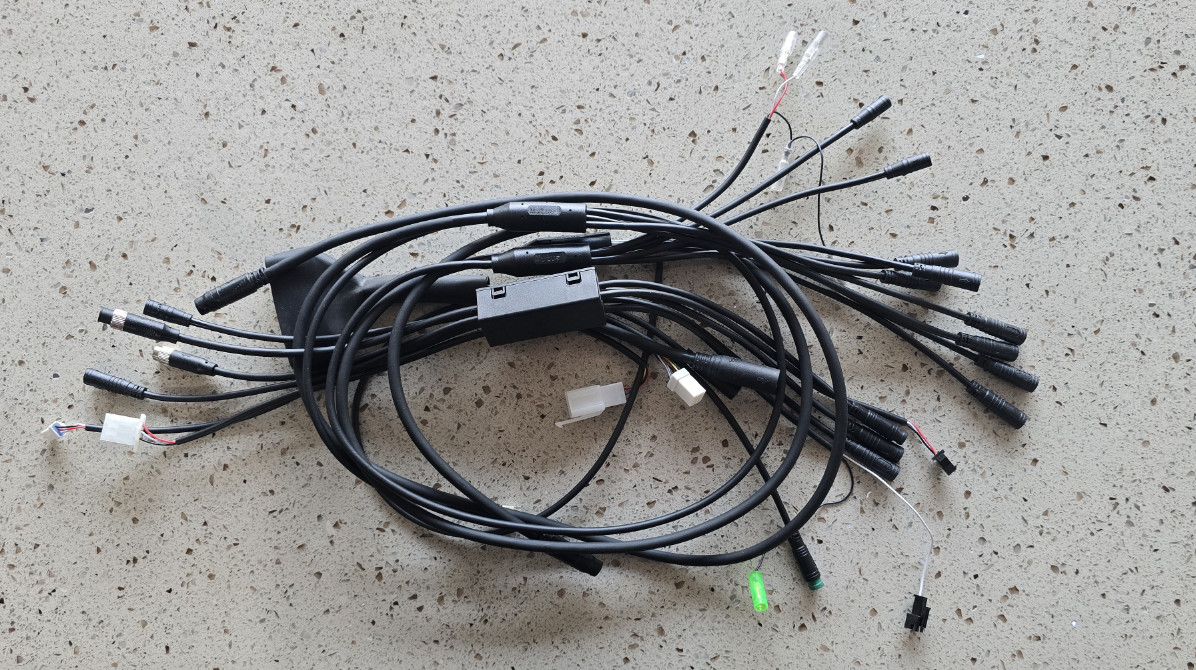

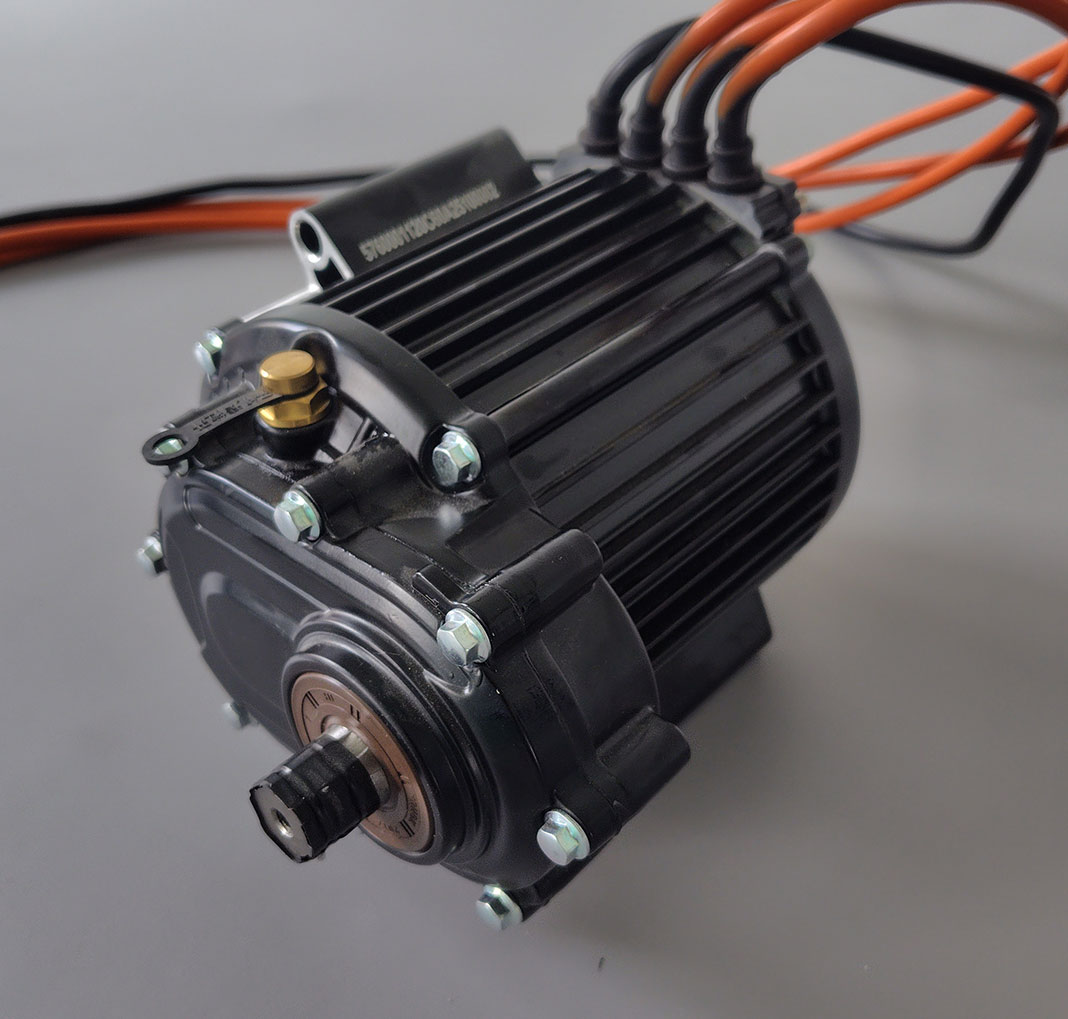

KIT SPECIFICATION

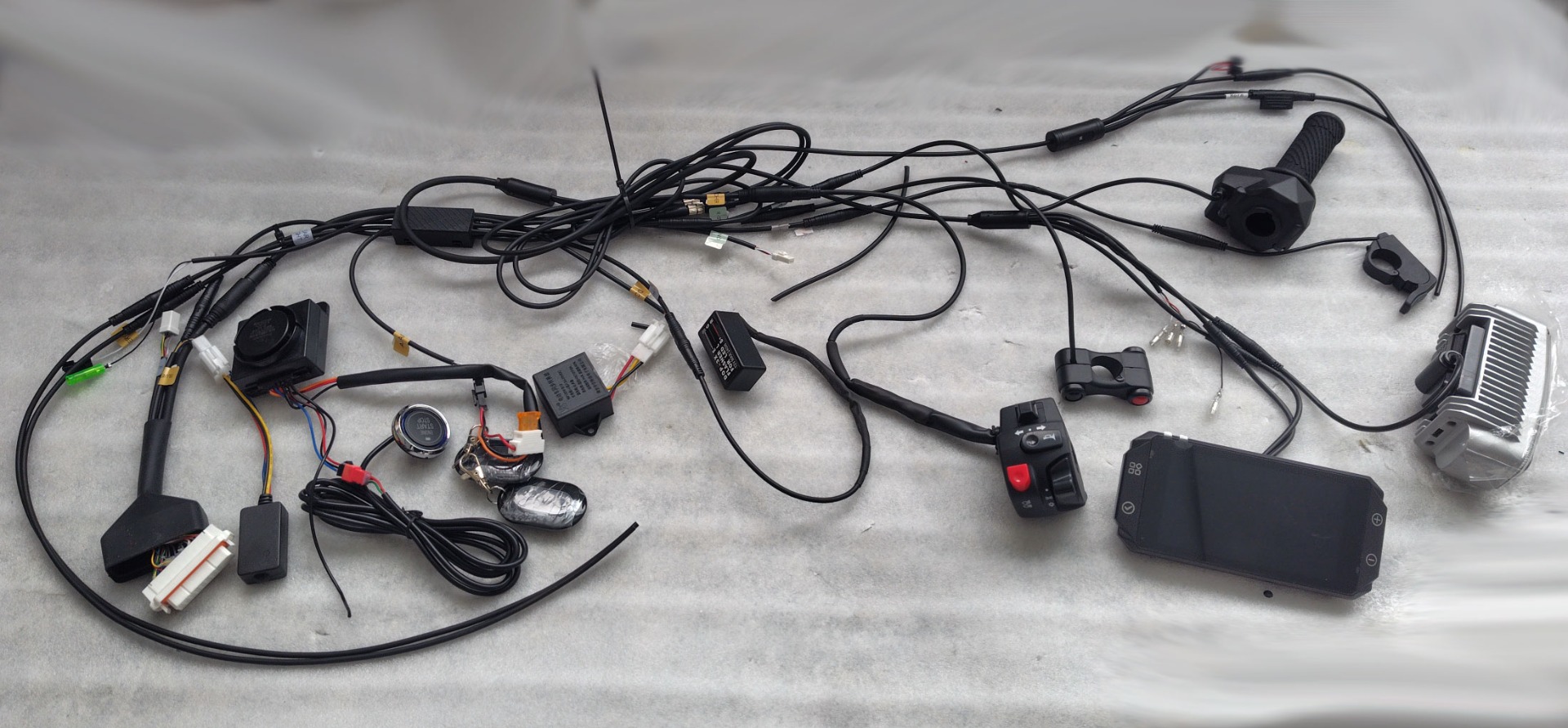

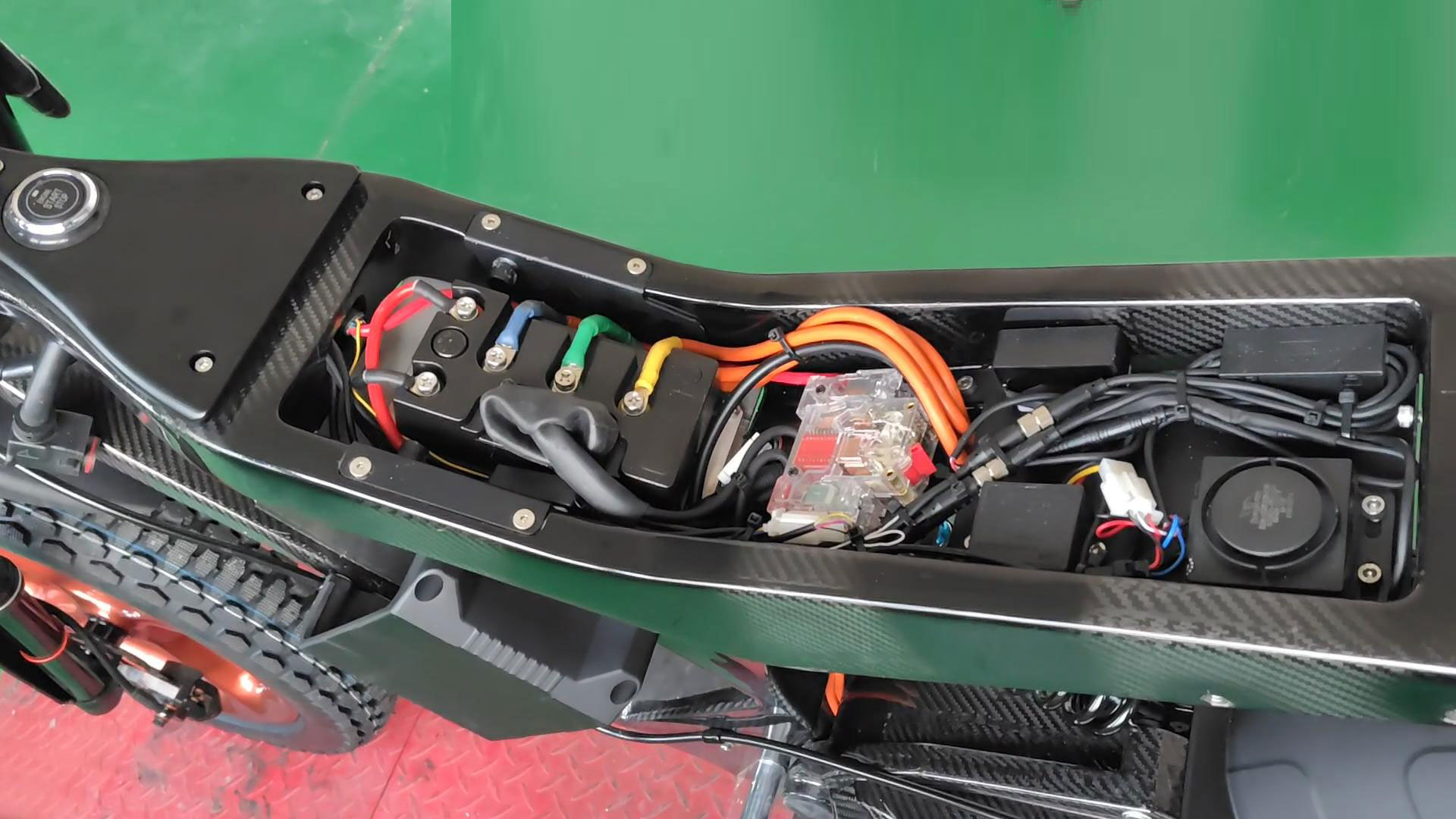

EXAMPLE CABLE SET IN TECHNO E-BIKE
