Samurai & E-clipse Parts    >>    Denzel controller:  Controller Orient DY450

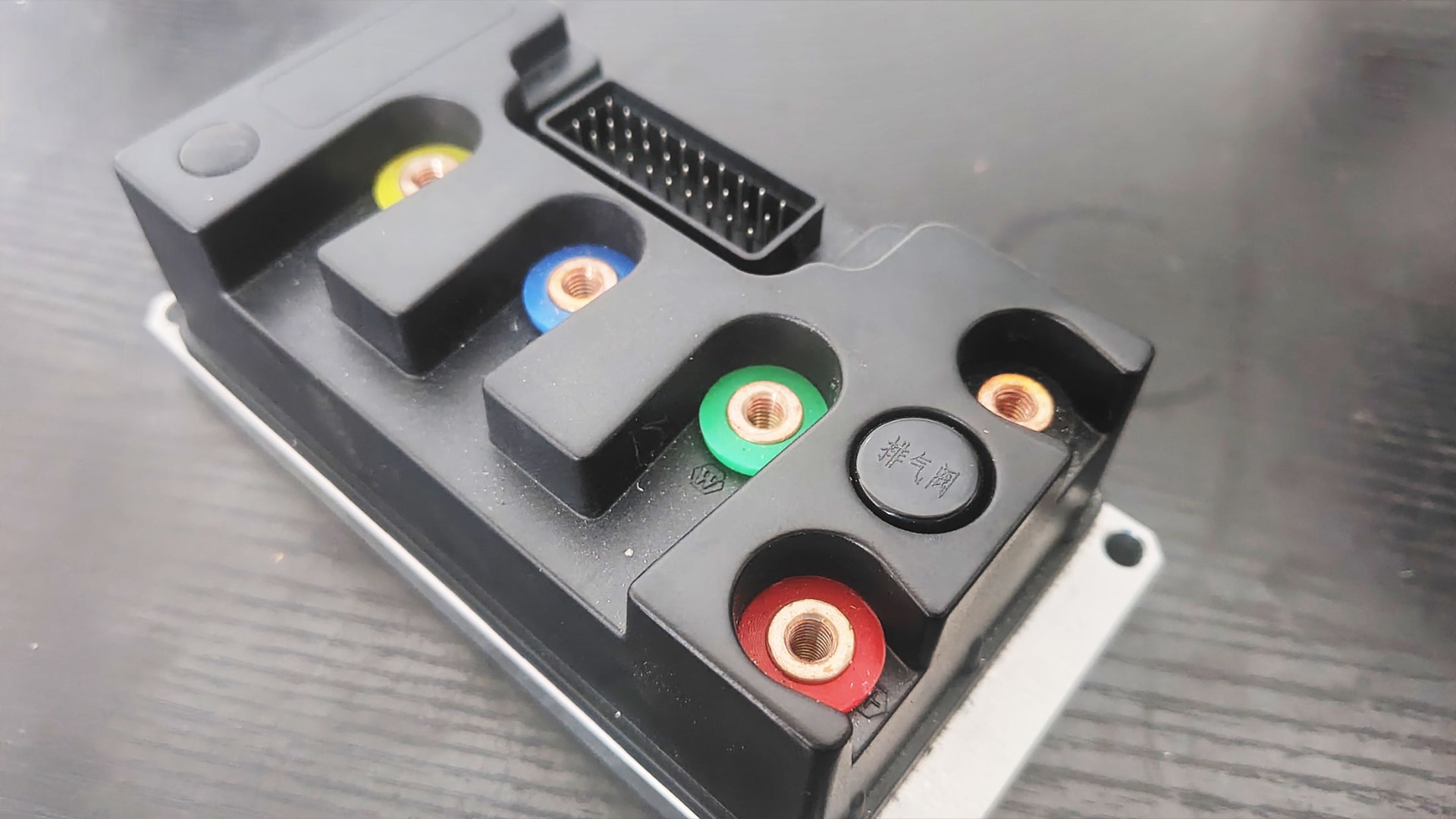

Controller Orient DY450

Specification

Max phases current:  450A

Max battery current:  150A

Peak working voltage: 90V

CAN protocol, Bluetooth (APP for android and Iphone)

For any type of magnet motor.

Waterproff: IP67


FUNCTION

SPORT / ECO mode

Reverse

Kick stand sensor input signal

Speed lim function

EBS (electric brake system) with regen function

AEBS (analog electric brake system) with regen function

CRUISE control

Parking

Weakening of the magnetic field

Support temperature sensor: KTY-83, KTY-84, NTC

Controller D450A SIZE

The high of controller: 54.4 mm

Accessories

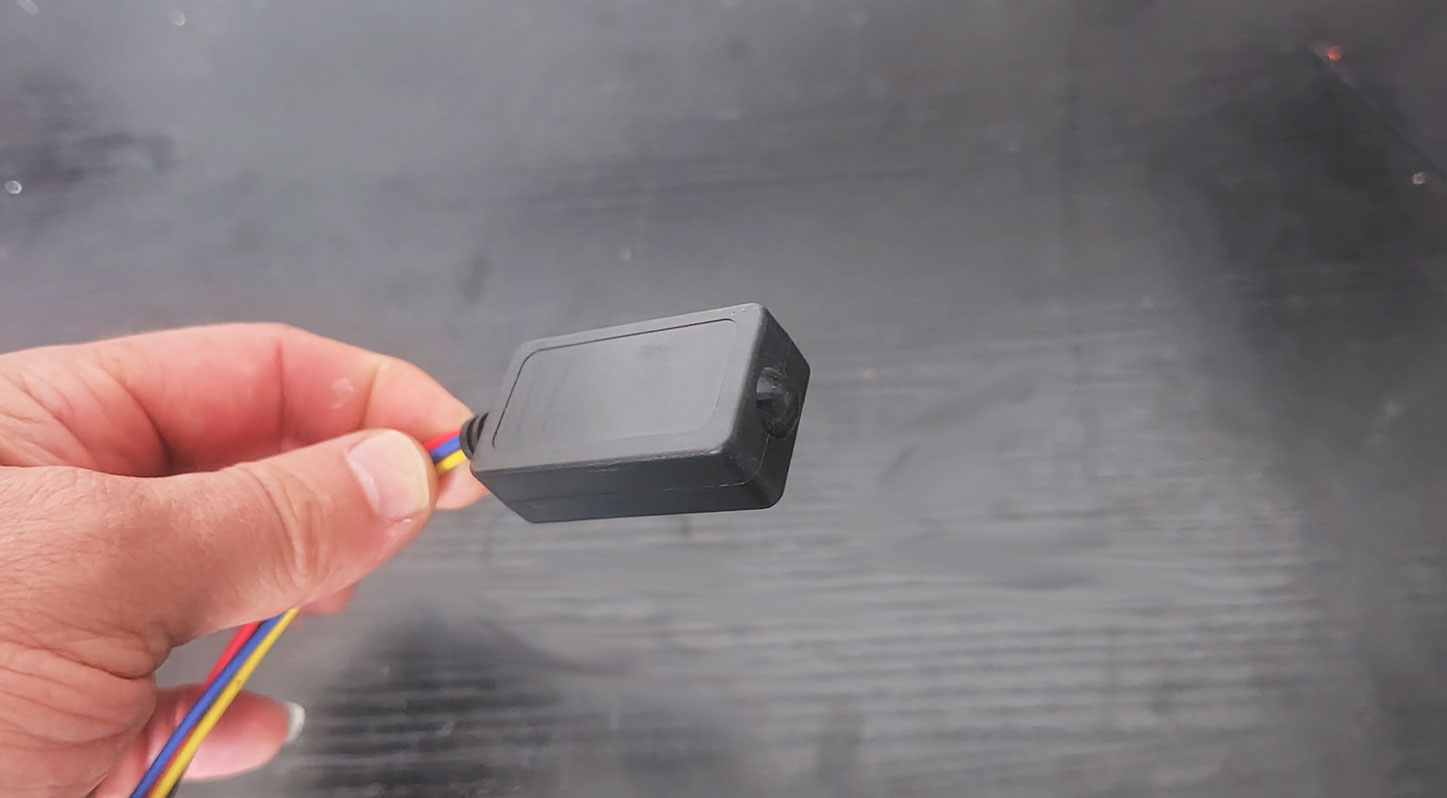

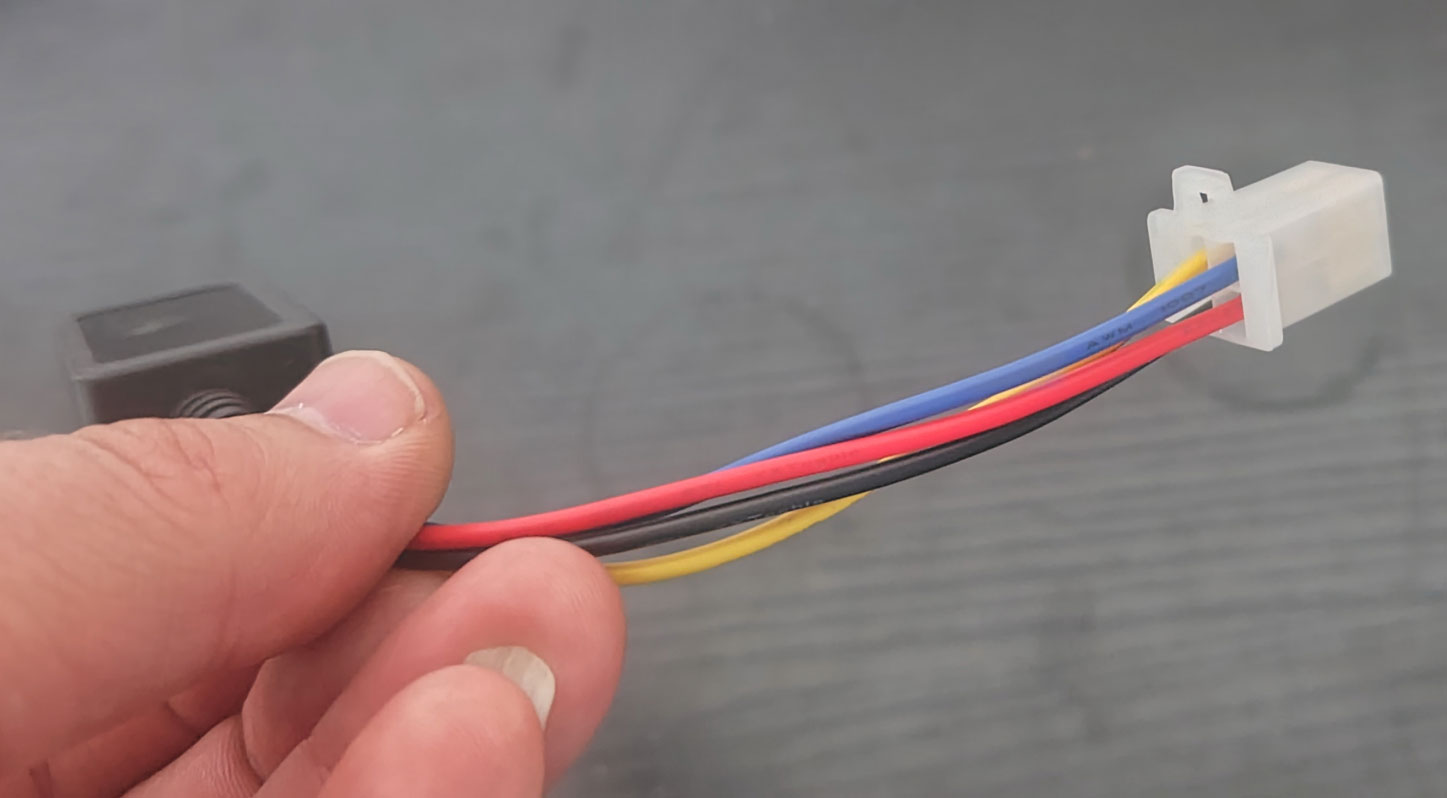

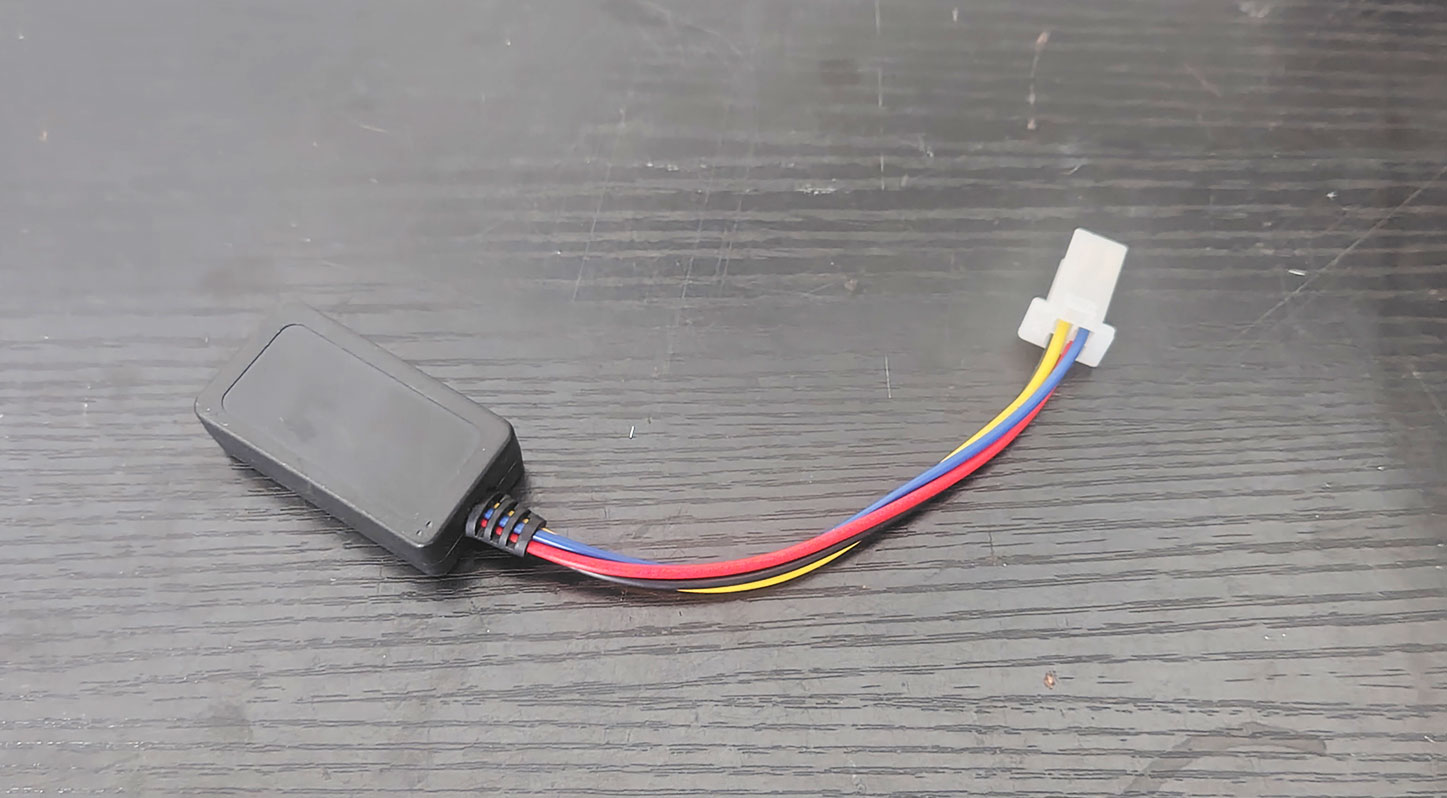

BLUETOOTH ADAPTER

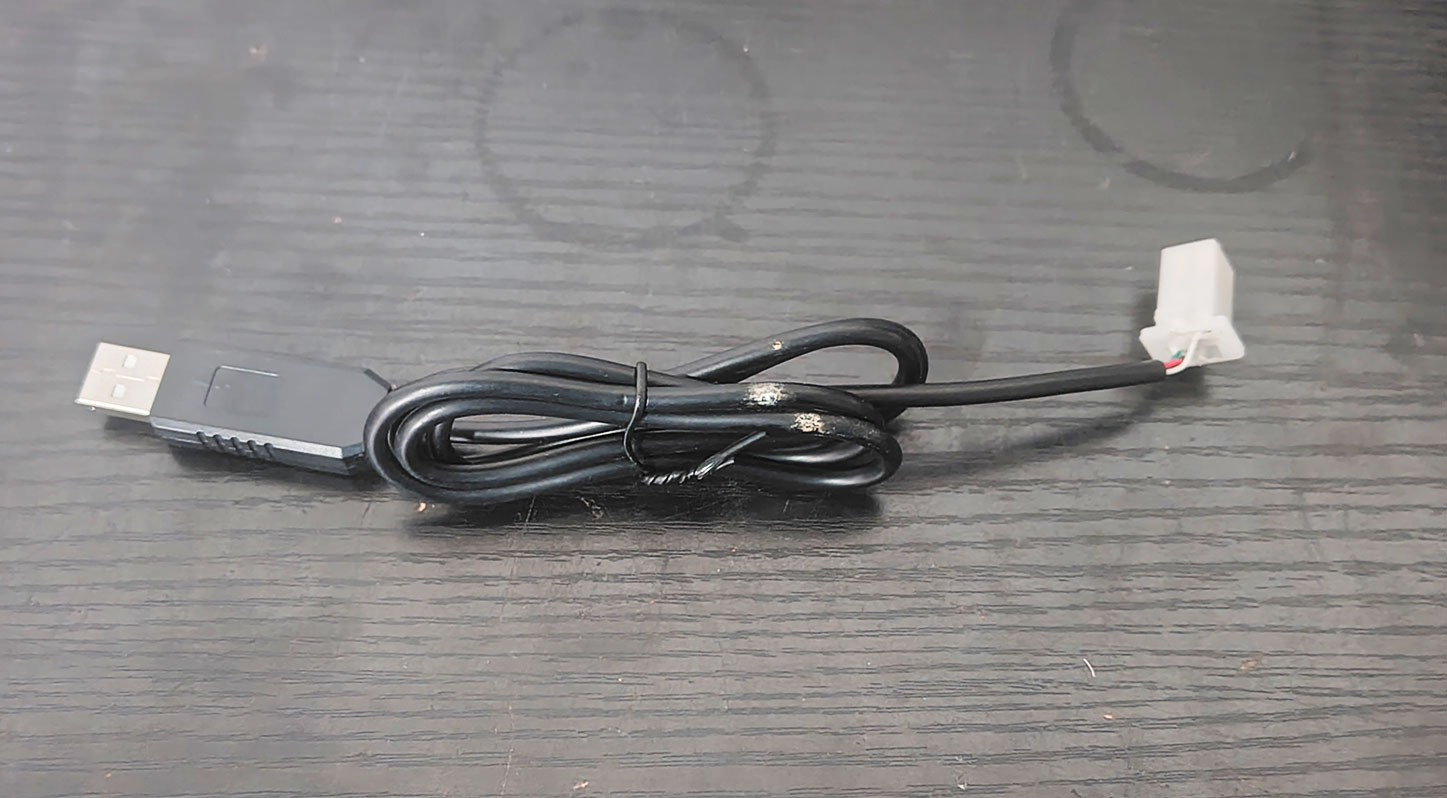

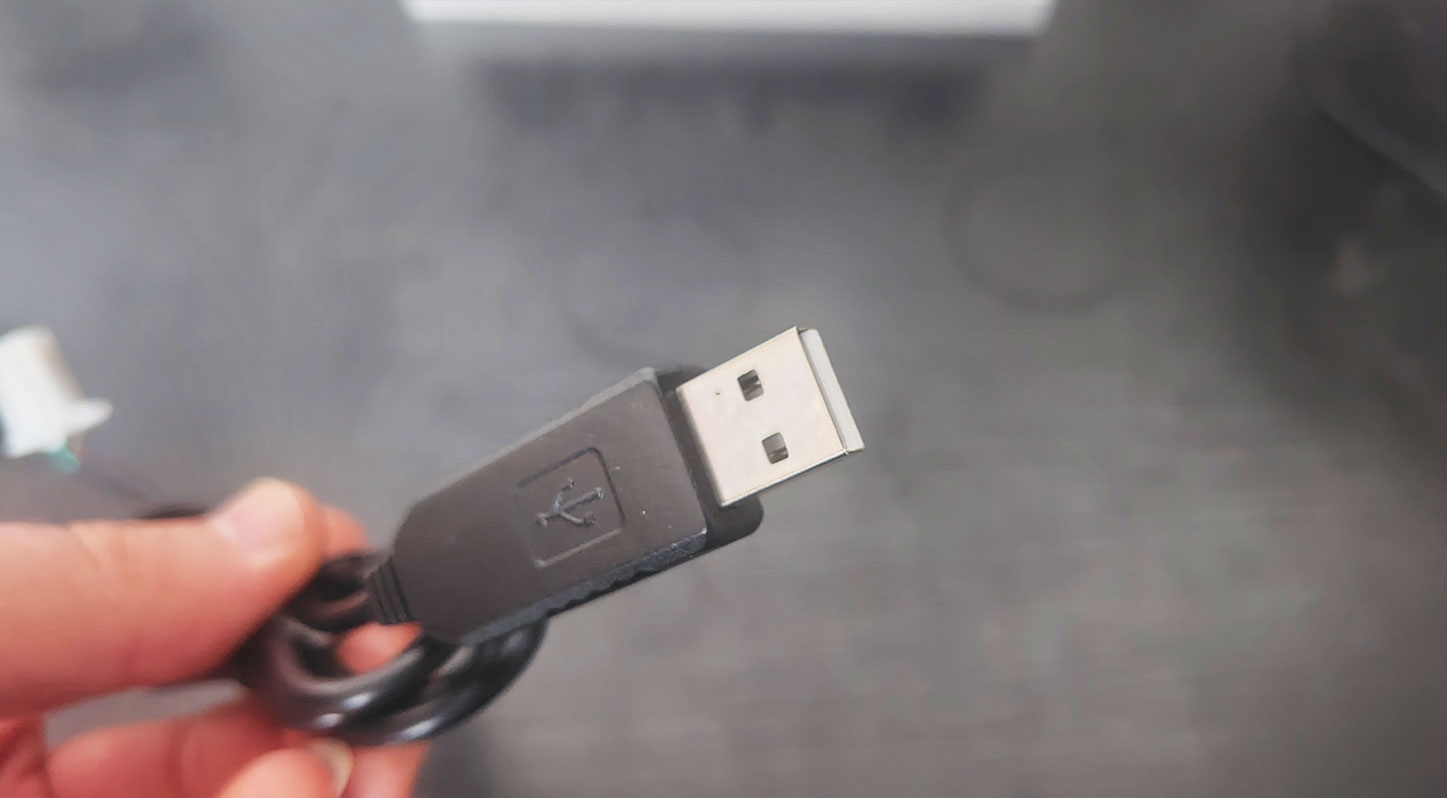

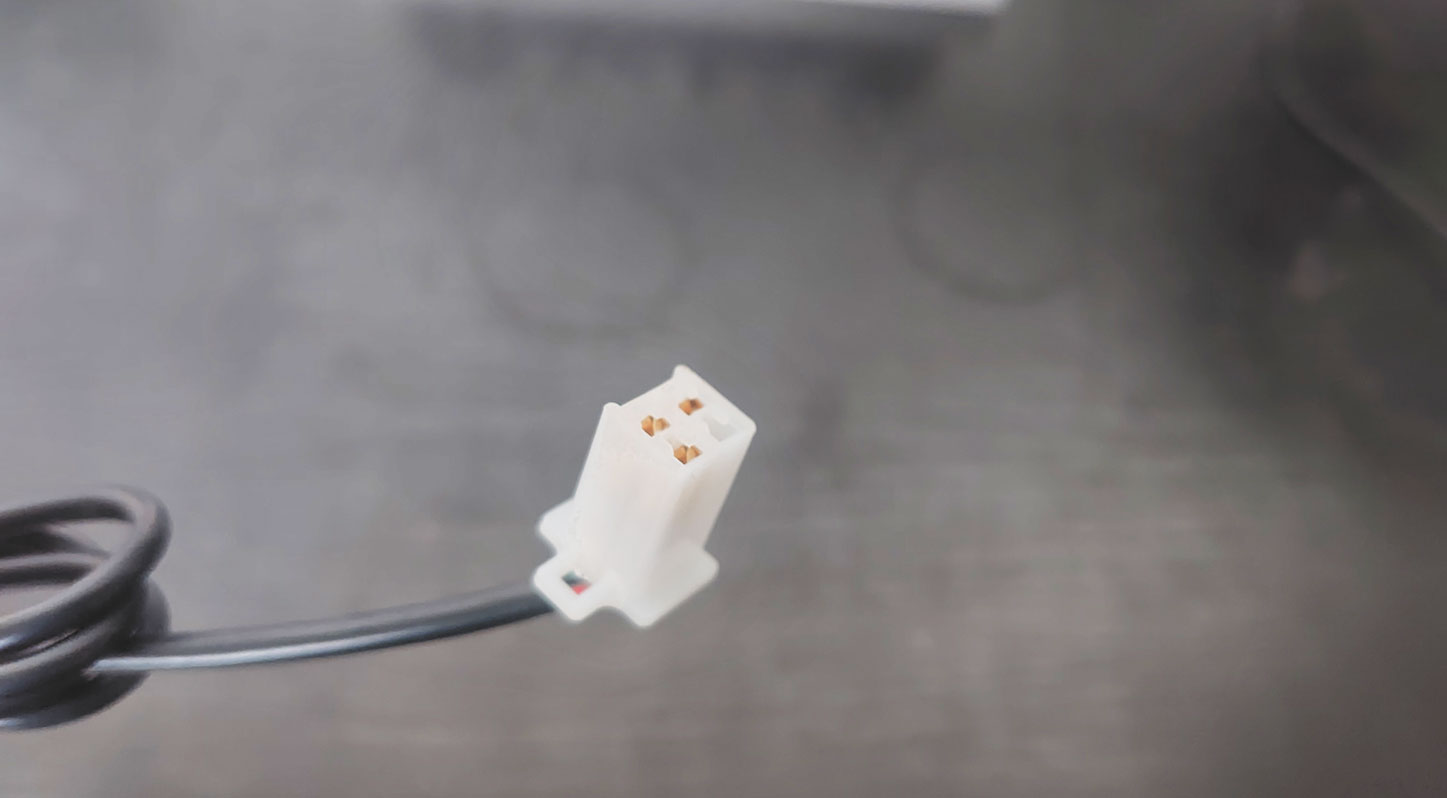

USB-cable for connect the controller with PC

You need USB cable if you want to upgrade software of the controller

SERVICE

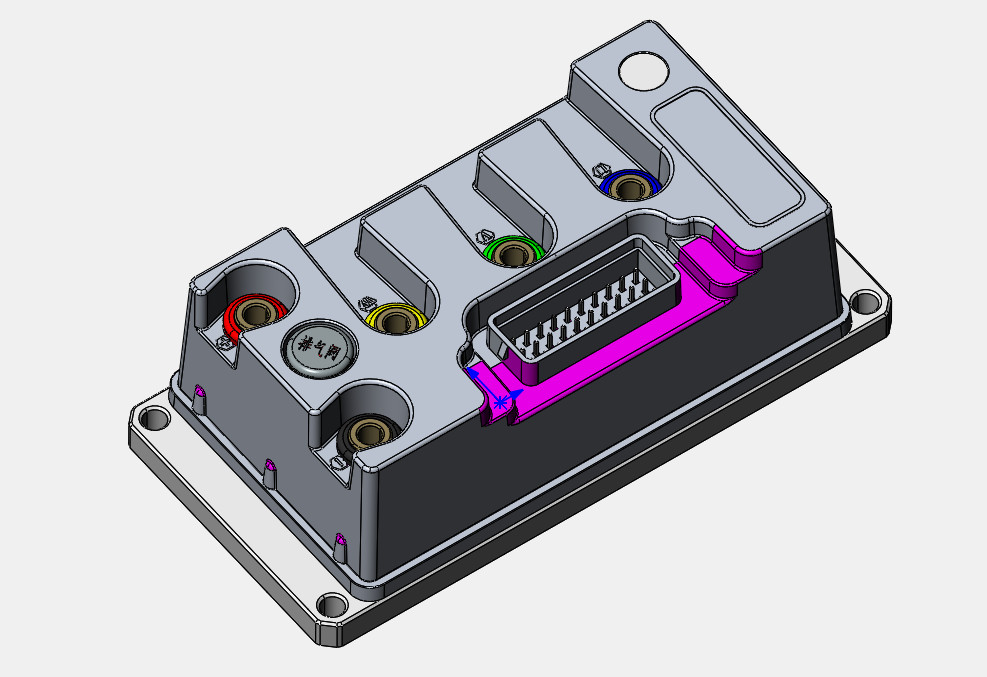

If you need 3D file of this controller for your project - you can download it here. 3d file in Solid works (STP)

size: 9.8 Mb

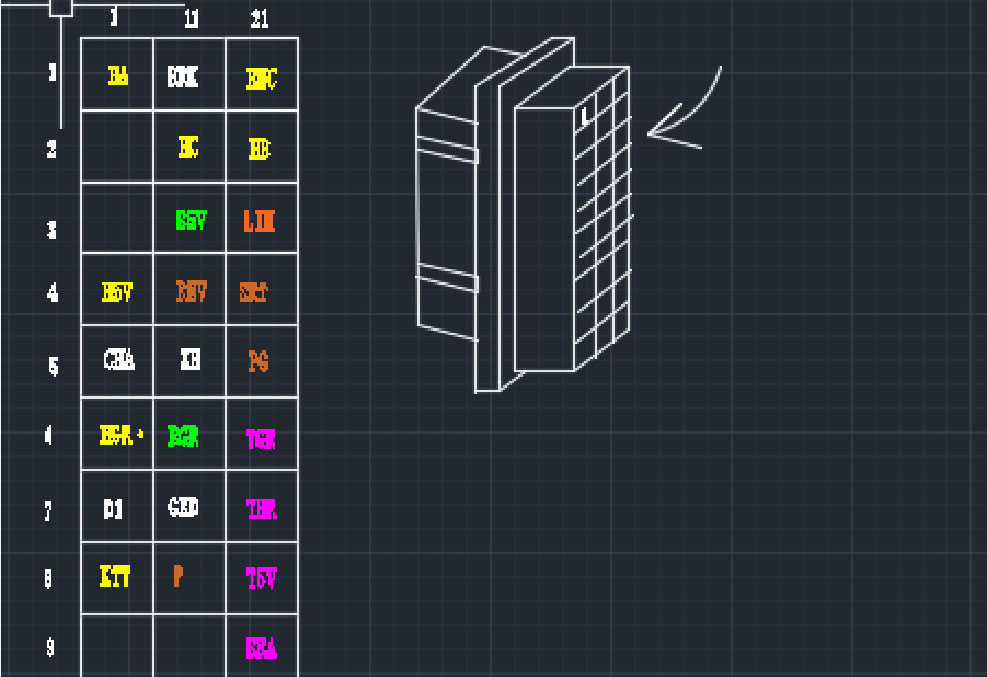

Here you can download scheme of 30 - pin connector on the controller.  PDF format.

Size: 290 kb

Here you can download APP (android)  for bluetooth connection with your controller and android Phone.
