Controller Orient D1000
Specification
Max phases current: 1000A (option 1200A)
Max battery current: 400A (option 600A)
Peak working voltage: 90V
CAN protocol (option), Bluetooth (APP for android and Iphone)
For any type of magnet motor.
Waterproff: IP67
FUNCTION
SPORT / ECO mode
Reverse
Kick stand sensor input signal
Speed lim function
EBS (electric brake system) with regen function
AEBS (analog electric brake system) with regen function
CRUISE control
Parking
Weakening of the magnetic field
Support temperature sensor: KTY-83, KTY-84, NTC

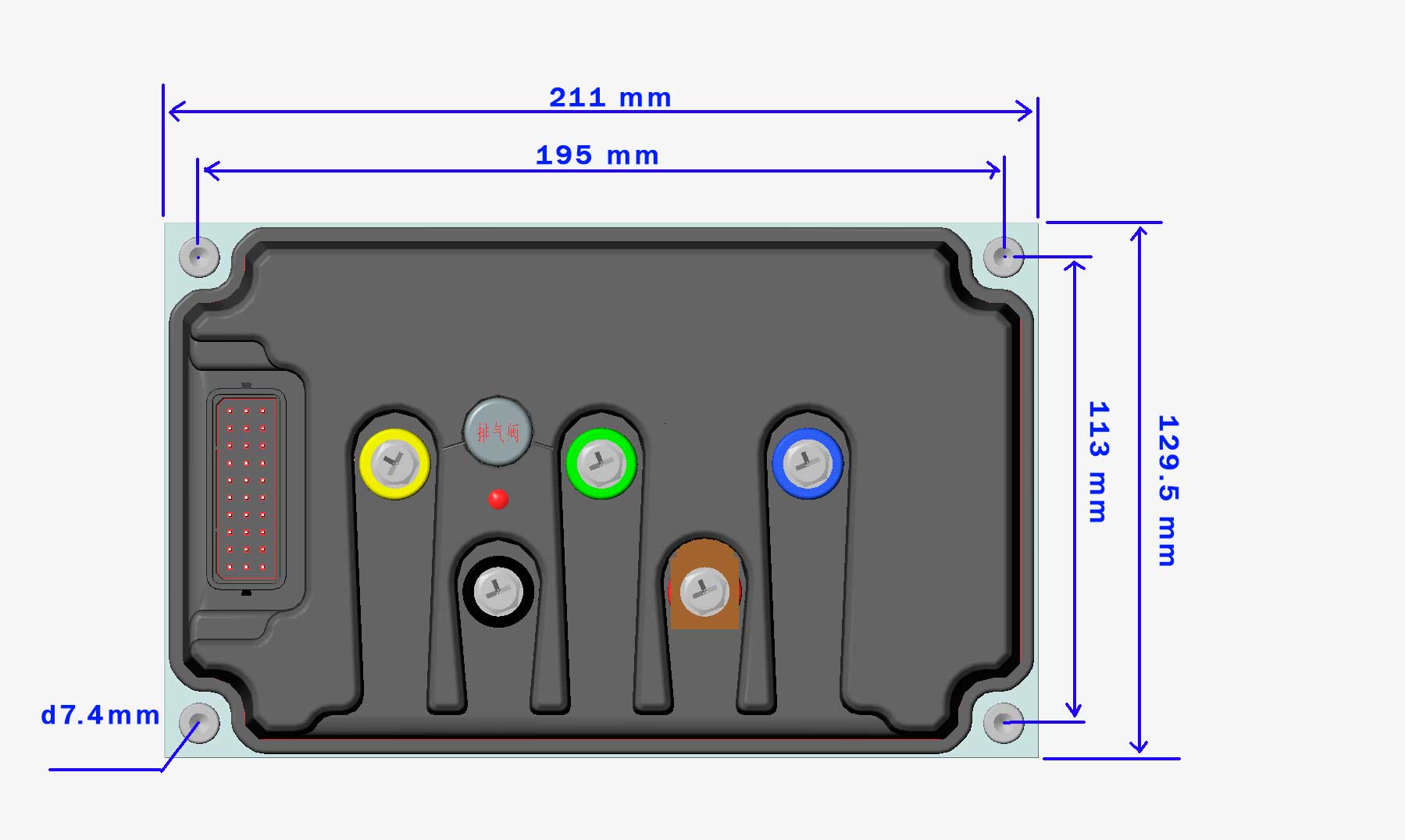

ORIENT D1000A - SIZE
The high of the controller: 59 mm

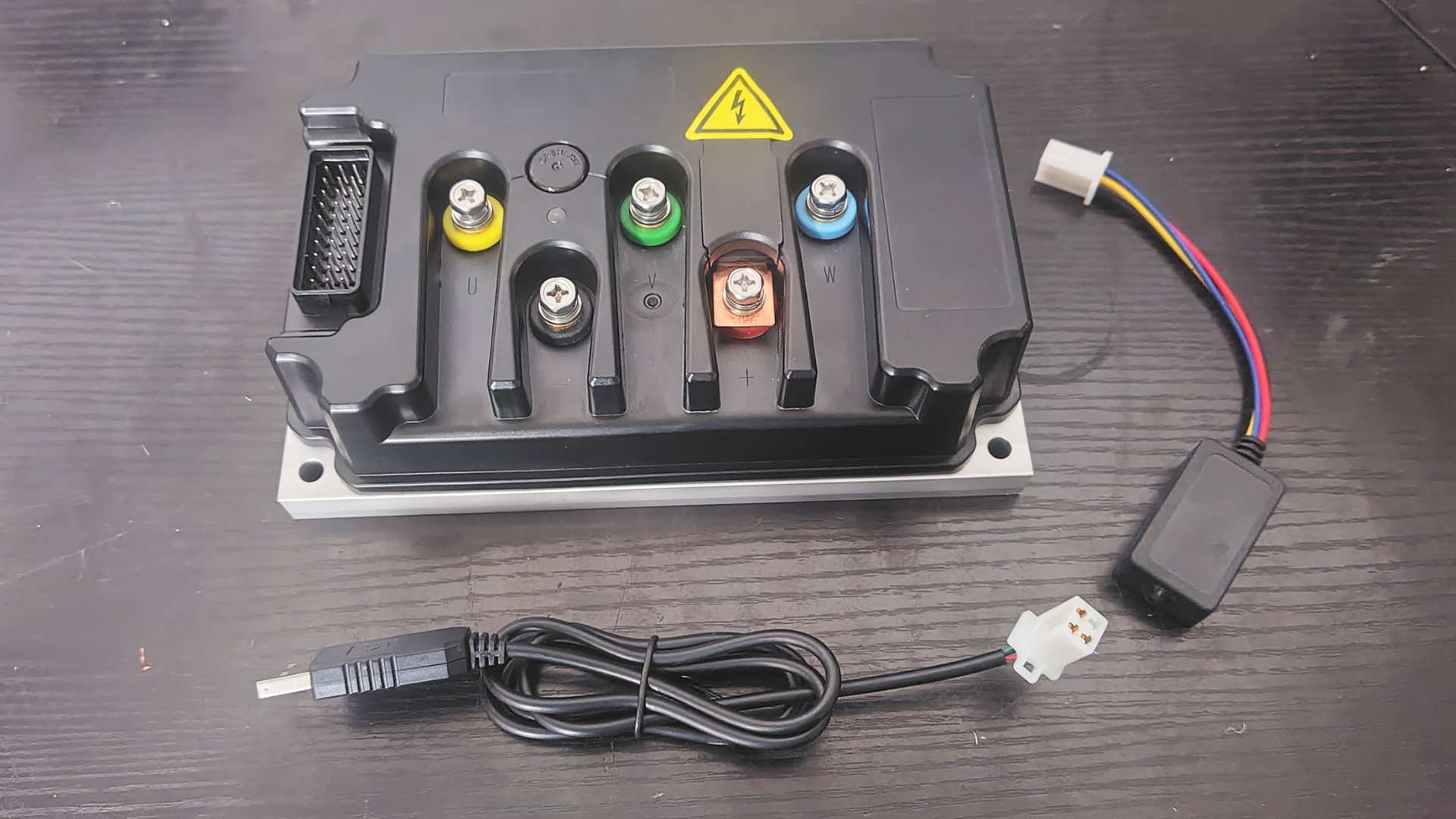

Accessories
BLUETOOTH ADAPTER
USB-cable for connect the controller with PC
You need USB cable if you want to upgrade software of the controller
SERVICE
If you need 3D file of this controller for your project - you can download it here. 3d file in Solid works (STP)
size: 9.12 Mb
Here you can download scheme of 30 - pin connector on the controller. PDF format.
Size: 290 kb
Here you can download APP (android) for bluetooth connection with your controller and android Phone.
