USEFULESS (TECHNO PARTS): BATTERY BOX TECHNO

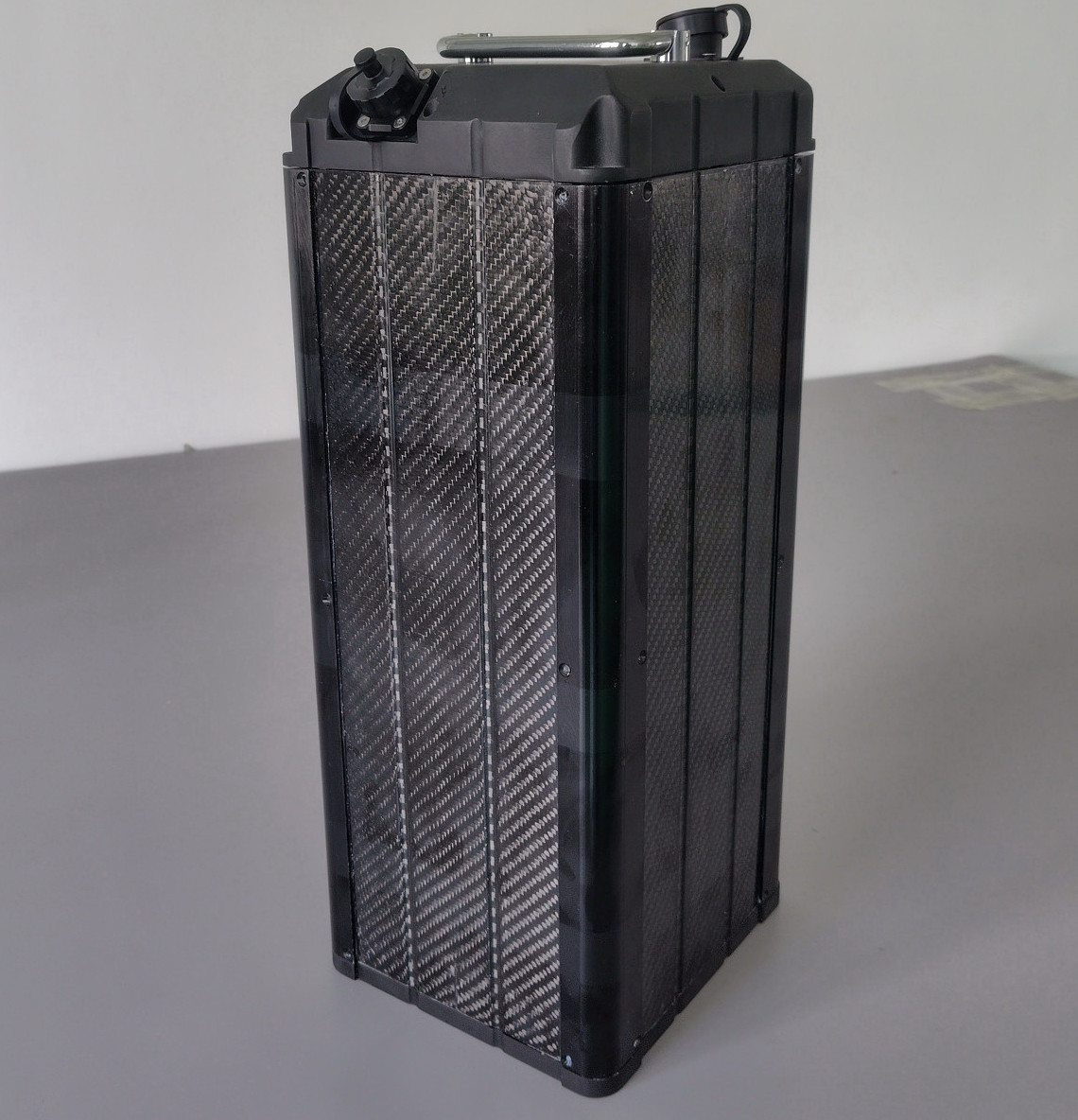

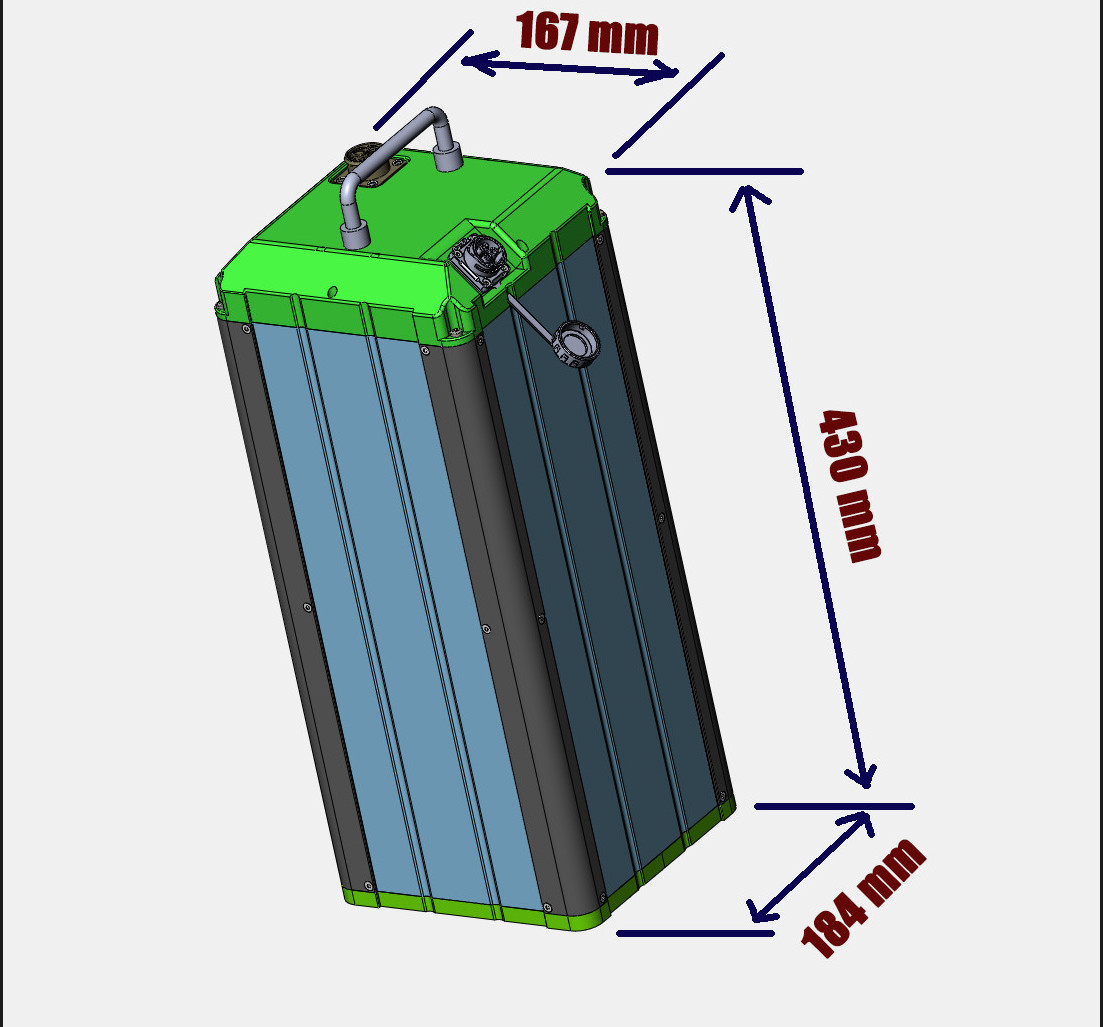

Battery Box Techno
Battery box body material: Carbon fiber (3K) and Aluminum column.
The battery box of the lid is Fiberglass
Discharger socket: rated current 120A
Charger socket: rated current: 20A
Capacity: 72V 50Ah - 60Ah
Waterproof.
USING IN PROJECT DENZEL TECHNO

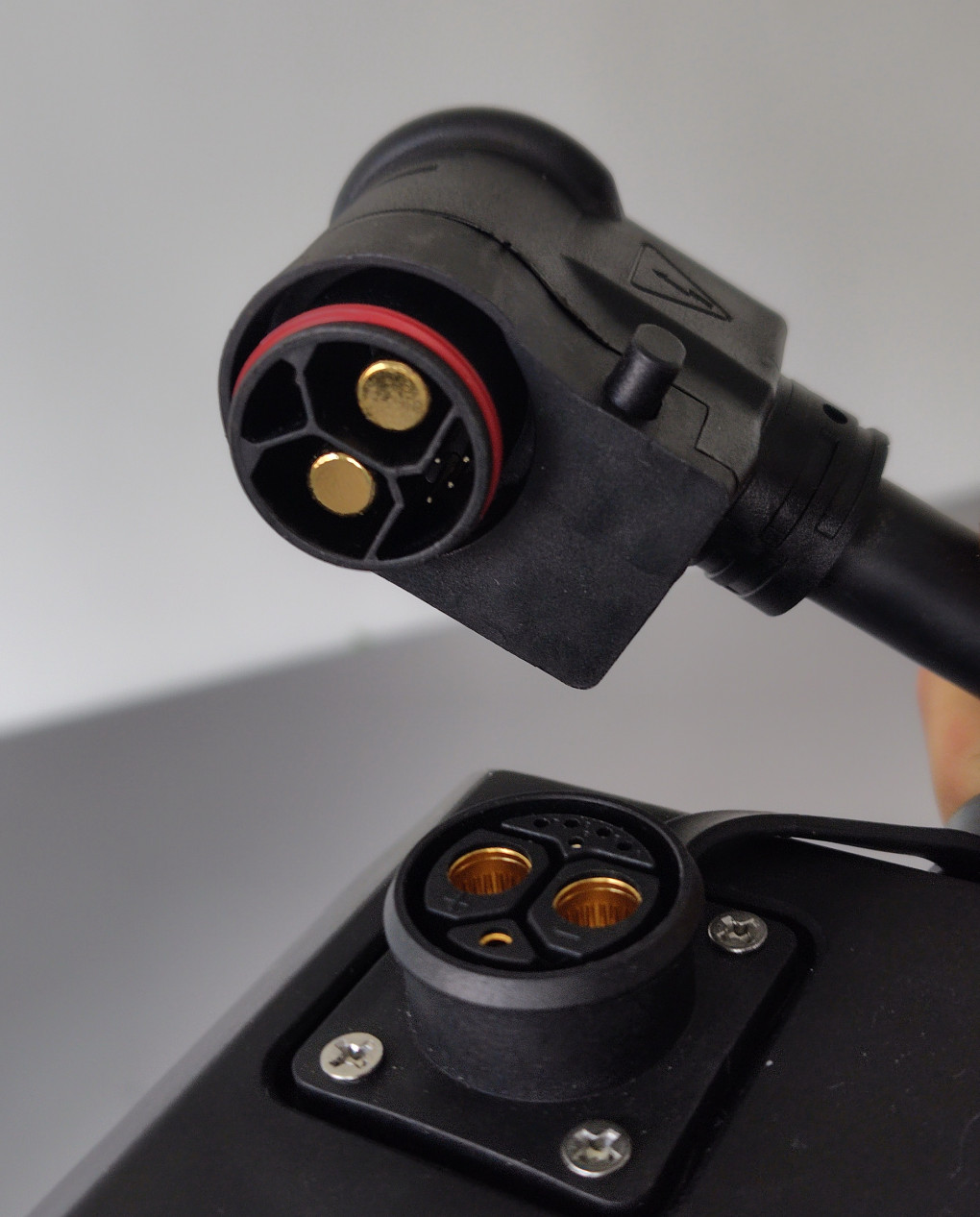

Discharge Connector
Mechanical life: 3000 times
Rated voltage: 0 - 96V
Current load test: Current 100A, Test time: 40 min
Insulated layer (wire skin) : Temperature before test: 27.8C, Temperature after test: 65.7C
Terminal (contact): Temperature before test: 27.7C, Temperature after test: 86.6 C
Conductor (Core): Temperature before test: 26.9C, Temperature after test: 66.5C
The length of power connector cable - we make according your requirements

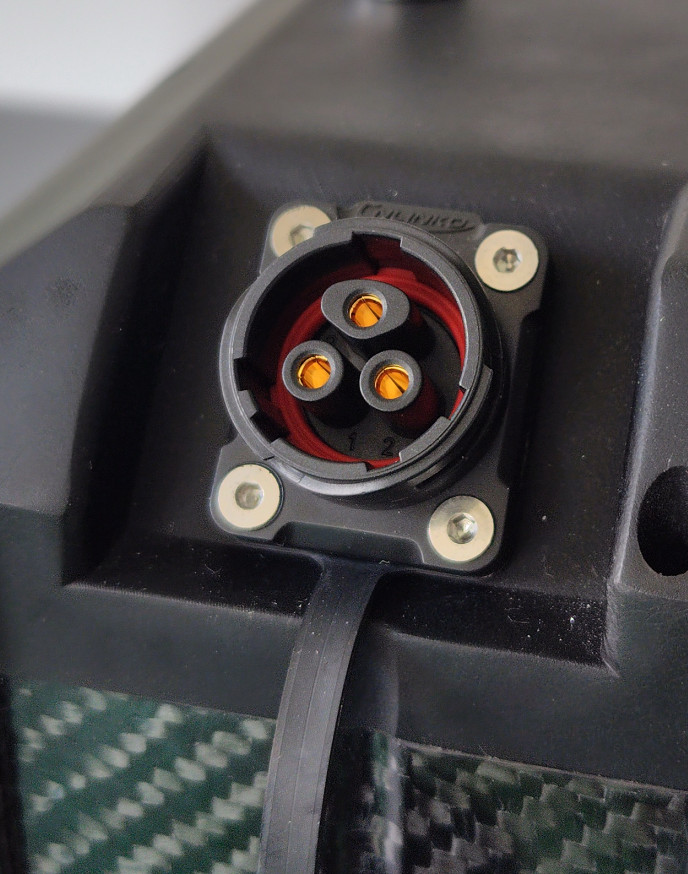

Charge connector
Model: Nlinko YM-20-3
Rated current: 20A
